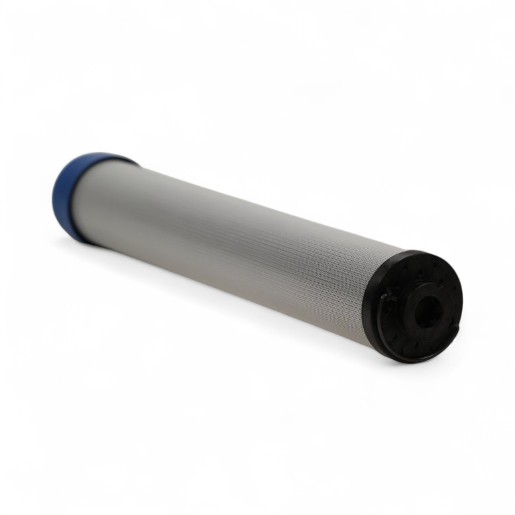

FILTREC replacement filter element for SF-Filter HY90330
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for SF filter HY 90330 - quality from Italy
This FILTREC replacement filter element with polyester filter medium, 15 µm filter fineness and max. 30 bar differential pressure is the high-quality alternative to the SF filter HY 90330. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 30 |
| Outer diameter (mm) | 88 |
| Height (mm) | 576 |
| Inner diameter top (mm) | 46 |
| Inner diameter bottom (mm) | 40,1 |
| Filter material | Synthetic polyester |
| Filter fineness c (micrometer) | ß15=1000 |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |

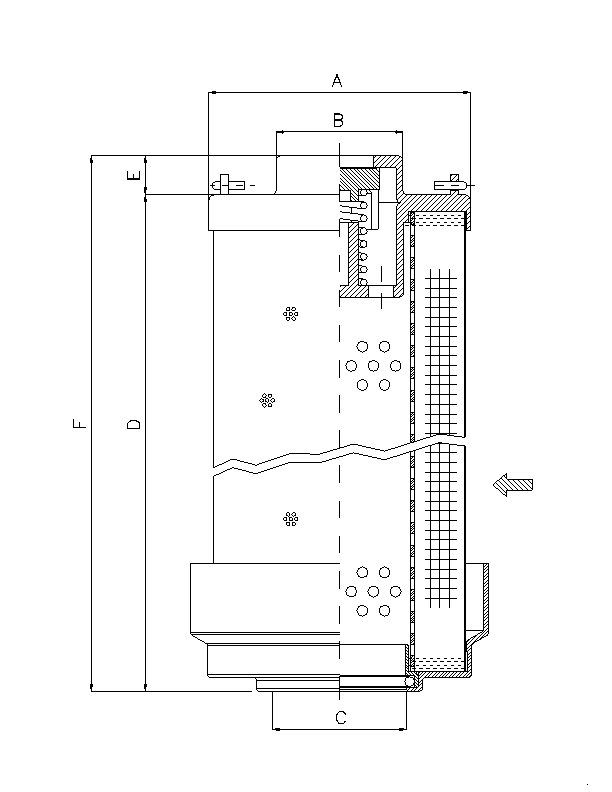

| A | 88 mm |
| B | 46 mm |
| C | 401 |
| D | 561 |
| E | 15 mm |
| F | 576 |
