FILTREC hydraulic filter element WT1847
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

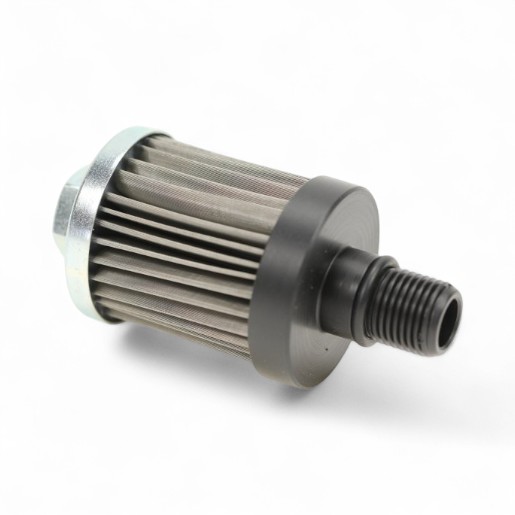

FILTREC filter element WT1847 - stainless steel wire mesh, 25µm
The FILTREC filter element for filter element WT1847 with stainless steel wire mesh filter medium, 25 µm filter fineness and NBR seal offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| Outer diameter (mm) | 42,5 |
| Height (mm) | 76 |
| Connection thread | M 16x1,5 |
| Inner diameter (mm) | 41.5 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 25 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |
| D1 | 42.5 |
| D2 (mm) | 41.5 |
| G | M 16x1,5 |
| H1 | 76 |
| H2 | 51 |
| H3 | 10 |
