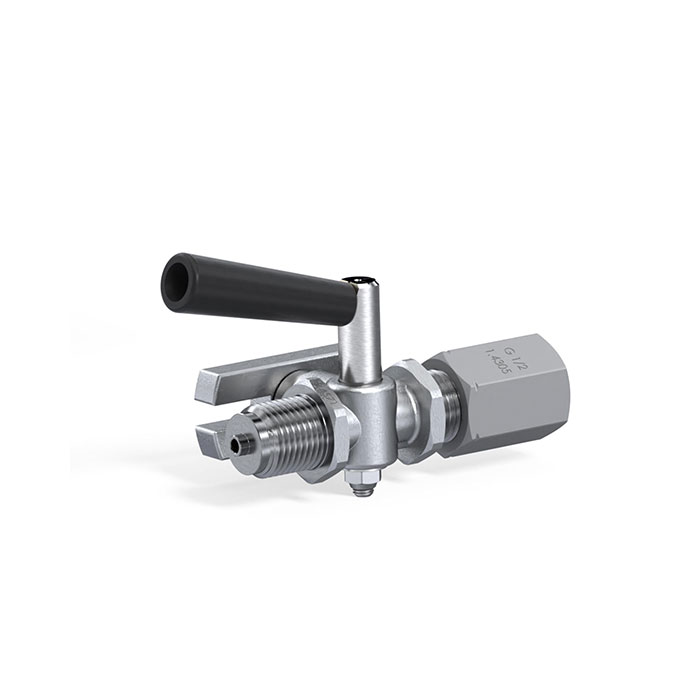

RIEGLER Block valve pressure gauge, taps - tension sleeve, G 1/2
Type number: 9022/ES
EAN: 4047322122986
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
102660EAN :
4047322122986Category :
Accessories for Pressure GaugesWeight :
0.53 kgPressure gauge stopcock, spigot clamping sleeve, body ES 1.4571, clamping sleeve ES 1.4305, G1/2, PN 25bar, SW27, max. 50°C, test flange 60x25x10
| Temperature range max. | 50 °C |
| Housing | Stainless steel 1.4571 |
| Area of application | for all pressure gauges with flat sealing ring to DIN 16258 |
| Hand lever | Plastic |
| Thread | G 1/2 |
| SW | 27 mm |
| PN | 25 bar |
| Test flange | 60x25x10 |
| Execution | Spigot / clamping sleeve, with test flange 60x25x10 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Clamping sleeve | Stainless steel 1.4305 |
