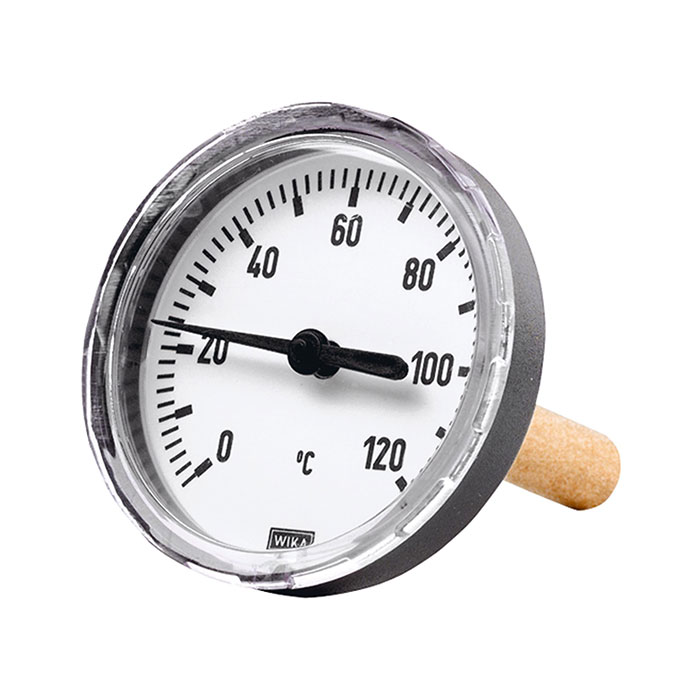

RIEGLER Bi-metallic thermometer rear G 1/2, Immersion shaft length 100 mm
Type number: 4606
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Bi-metallic thermometer for heating, Connection rear, G 1/2, Immersion shaft length 100 mm, Ø 63 mm, Display range 0 °C to 120 °C
| Housing | Plastic |
| Type | 46 |
| Viewing window | Acrylic glass |
| Display correction | at the end of the immersion shaft (Ø 9 mm) |
| Thermowell | clamped on (removable), copper alloy |
| Operating pressure | max. 6 bar (at the thermowell) |
| Thread | G 1/2 |
| Diameter | 63 mm |
| Graduation value in the bar range | 2 bar |
| Dip shaft length | 100 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Display range min. | 0 °C |
| Display range max. | 120 °C |
| Connection position | at the back |
| Class name | FLEX |
