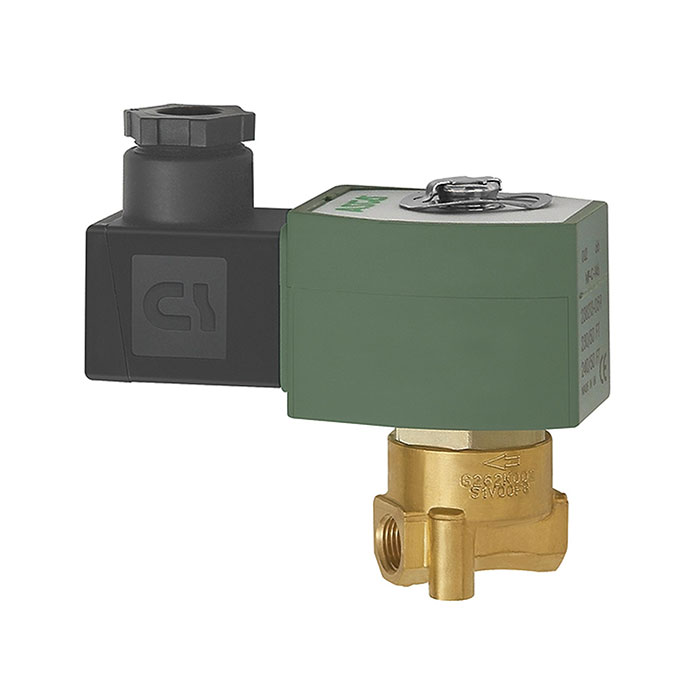

RIEGLER 2/2-way solenoid valve, NC, directly operated, 24 V DC, G 1/8
Type number: MV 1224 G
EAN: 4047322157872
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
2/2-way solenoid valve, MS, NC, direct acting, 24V DC, med temp -15 to +120°C, ambient temp -15 to +55°C,FPM,G1/8,PN 0-8bar
| Housing | Brass |
| Sealing material | FPM |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | ISO 4400, cable socket (Pg 11P) |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 8 bar |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 120 °C |
| Ambient temperature min. | -15 °C |
| Ambient temperature max. | 55 °C |
| Interior parts | Stainless steel |
| Valve seat | Brass |
| Thread | G 1/8 |
| DN | 45325 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| Design | 1 |
| Function | normally closed (NC) |
| A | 75 mm |
| B | 30 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | MAX |
