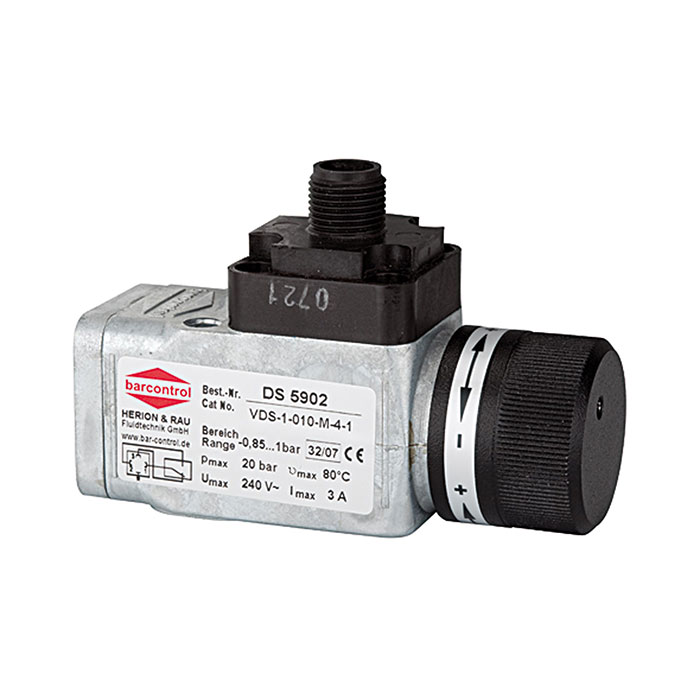

RIEGLER Vacuum pressure switch,Special die casting,Flange,-0.85/-0.15 bar
Type number: DS 5902
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Vacuum pressure switch, Electrical M12x1, Temp. -20 °C to 80 °C, Flange, Setting range -0.85 / -0.15 bar, max. 48 V AC / 24 V DC
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Housing | Special casting |
| Membrane | NBR |
| Protection class | IP 65 (DIN 43650), IP 67 (M12x1) |
| Area of application | Compressed air applications |
| Switching voltage | max. 48 V AC / 24 V DC |
| Switching frequency | 1Hz |
| Setting range | -0.85 / -0.15 bar |
| A | 48 mm |
| B | 28 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | Flange |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Inductive load | max. 1 A |
| resistive load | max. 4 A / 3 A |
