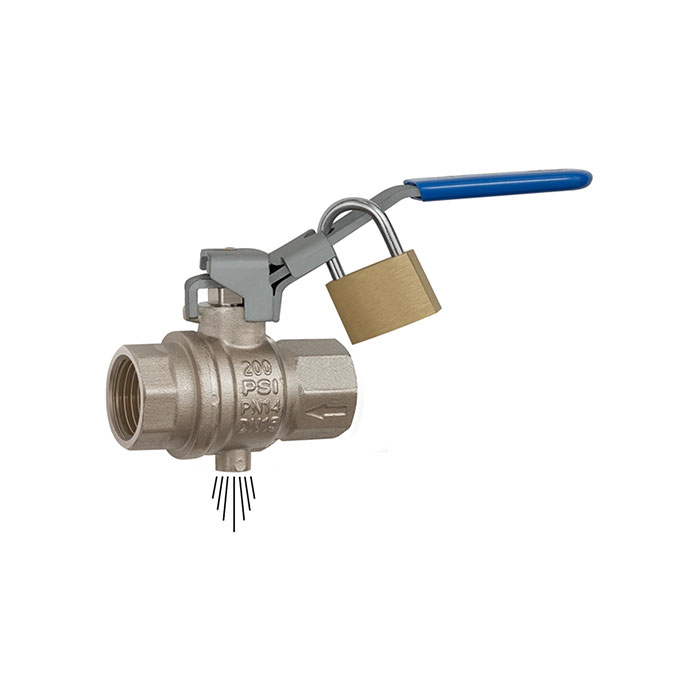

RIEGLER Ball valve, lockable, venting hole, Rp 1 1/4

Price:

58.50 €

RIEGLER Ball valve, lockable, venting hole, Rp 1 1/2
RIEGLER Ball valve, lockable, venting hole, Rp 1 1/2
78.56 € 78.56 €
RIEGLER Ball valve, lockable, venting hole, Rp 2
RIEGLER Ball valve, lockable, venting hole, Rp 2
119.71 € 119.71 €

RIEGLER Ball valve, lockable, venting hole, Rp 1 1/4

https://www.filcom-technik.de/web/image/product.template/171123/image_1920?unique=98fa1a8

Type number: 321.07

EAN: 4047322366236

58.50 € 58.5 EUR 58.50 € VAT Included

102.42 € VAT Included

Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

103154

EAN :

4047322366236

Category :

2-Way Ball Valves

Weight :

1.06 kg

Ball valve, lockable, vent hole G 1/4, MS nickel-plated, max. operating temp. 100 °C, Rp 1 1/4, DN 32, PN max. 14 bar

Housing Nickel-plated brass
Max. operating pressure 14 bar
Ball Hard chrome-plated brass
Ball seal PTFE
Spindle seal FKM
Hand lever Steel - PVC coated
Operating temperature min. -10 °C
Operating temperature max. 100 °C
Thread Rp 1 1/4
DN 32
Thread standard Rp thread to EN 10226
Vent hole G 1/4
A 157 mm
B 80 mm
L 93 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N
Theme shop SAFETY
Thread material Nickel-plated brass
Class name MAX
Bore diameter padlock approx. 7.3 mm
