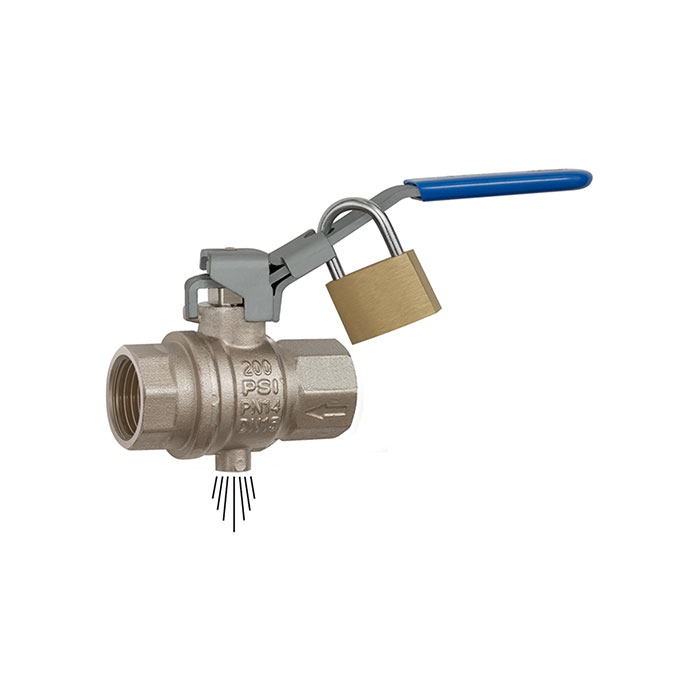

RIEGLER Ball valve, lockable, venting hole, Rp 1 1/2
Type number: 321.08
EAN: 4047322366243
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve, lockable, vent hole G 1/4, MS nickel-plated, max. operating temp. 100 °C, Rp 1 1/2, DN 40, PN max. 14 bar
| Housing | Nickel-plated brass |
| Max. operating pressure | 14 bar |
| Ball | Hard chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | FKM |
| Hand lever | Steel - PVC coated |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Thread | Rp 1 1/2 |
| DN | 40 |
| Thread standard | Rp thread to EN 10226 |
| Vent hole | G 1/4 |
| A | 157 mm |
| B | 86 mm |
| L | 102 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Thread material | Nickel-plated brass |
| Class name | MAX |
| Bore diameter padlock | approx. 7.3 mm |
