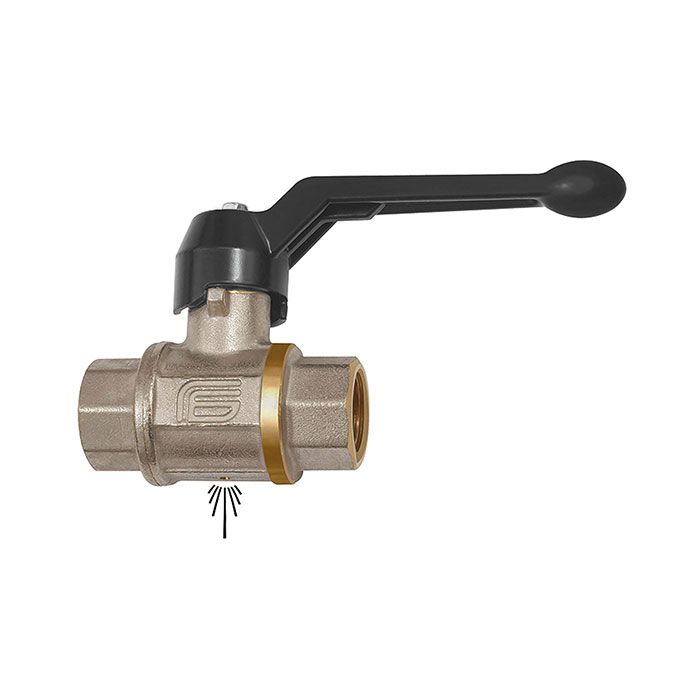

RIEGLER Ball valve not lockable, venting hole, Rp 3/4
Type number: 350.504
EAN: 4047322076418
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve, non-lockable, with vent hole, MS nickel-plated, max. operating temp. 60°C, Rp 3/4, DN 20, PN max. 12 bar
| Housing | Nickel-plated brass |
| Sealing material | PTFE |
| Max. operating pressure | 12 bar |
| Ball | Nickel-plated brass |
| Hand lever | Die-cast aluminum, black |
| Spindle | Nickel-plated brass |
| Stuffing box | Nickel-plated brass |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 60 °C |
| Thread | Rp 3/4 |
| DN | 20 |
| Thread standard | Rp thread according to ISO 7-1 |
| A | 120 mm |
| B | 76 mm |
| L | 77 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Theme shop | SAFETY |
| Thread material | Brass bright |
| Class name | PLUS |
