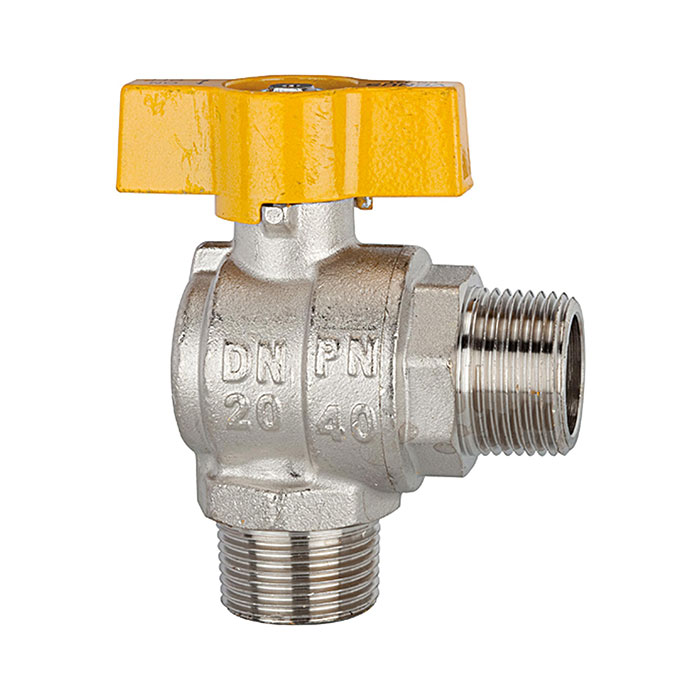

RIEGLER Rectangular ball valve, nickel-plated brass, ET/ET, R 3/4
Type number: 350.404
EAN: 4047322076197
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Angle ball valve, EN 331, MS nickel-plated, AG/AG, operating temp. -15°C to 100°C/60°C gas, R 3/4, DN 20, PN max. 40 bar/gas max. 5 bar
| Housing | Nickel-plated brass |
| Area of application | Gas, compressed air, water, oil |
| Interior parts | Nickel-plated brass |
| Ball seal | PTFE |
| Spindle seal | NBR |
| Wing handle | Aluminum, painted yellow |
| Operating pressure | max. 5 bar (MOP 5) gas, max. 40 bar liquids |
| Operating temperature | -15 °C to 60 °C gas, -15 °C to 100 °C liquids |
| DVGW approval | DIN EN 331:2013-05 |
| Thread | R 3/4 |
| DN | 20 |
| Thread standard | R-thread according to ISO 7-1 |
| A | 56 mm |
| B | 46 mm |
| E | 43 mm |
| F | 40 mm |
| C Ø | 38.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | FLEX |
