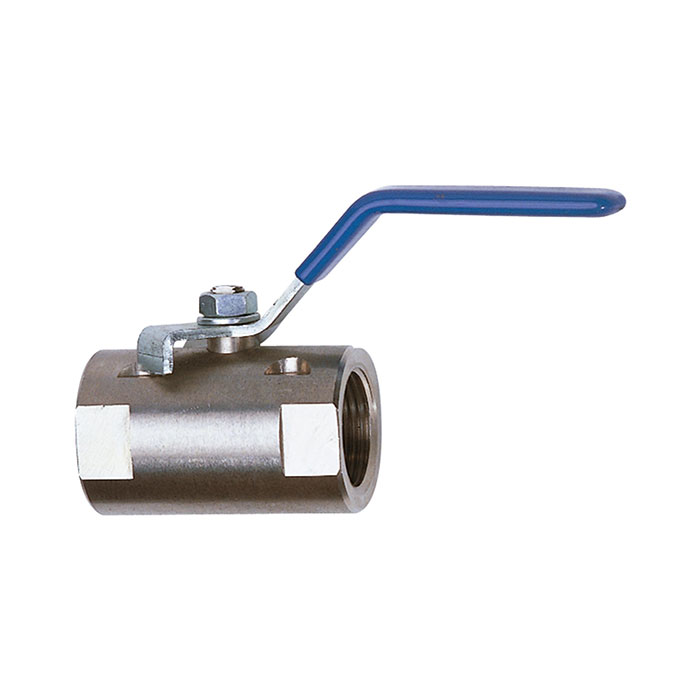

RIEGLER Stainless steel ball valve, 1-piece, Full passage, G 3/8
Type number: 398.03
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Stainless steel ball valve 1.4401/1.4408, 1-piece, Full passage, Operating temp. -20 °C to 150 °C, G 3/8, DN 10, PN max. 63 bar
| Housing | Stainless steel 1.4401/1.4408 |
| Ball | Stainless steel 1.4401 |
| Ball seal | RPTFE (15% glass fiber reinforced) |
| Spindle seal | PTFE |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Operating pressure | max. 63 bar (depending on temperature) |
| Thread | G 3/8 |
| DN | 10 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 80 mm |
| B | 33 mm |
| L | 44.8 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103423] RIEGLER Stainless steel ball valve, 1-piece, Full passage, G 1/4](/web/image/product.template/171389/image_128/%5B103423%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%201-piece%2C%20Full%20passage%2C%20G%201-4?unique=f977a4d)
|
Type number: 398.02 |
36.00 € | |
![[103427] RIEGLER Stainless steel ball valve, 1-piece, Reduced passage, G 1](/web/image/product.template/171393/image_128/%5B103427%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%201-piece%2C%20Reduced%20passage%2C%20G%201?unique=080286b)
|
Type number: 398.06 |
70.42 € | |
![[103429] RIEGLER Stainless steel ball valve, 1-piece, Reduced passage, G 1 1/2](/web/image/product.template/171395/image_128/%5B103429%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%201-piece%2C%20Reduced%20passage%2C%20G%201%201-2?unique=5bb174b)
|
Type number: 398.08 |
128.40 € | |
![[103428] RIEGLER Stainless steel ball valve, 1-piece, Reduced passage, G 1 1/4](/web/image/product.template/171394/image_128/%5B103428%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%201-piece%2C%20Reduced%20passage%2C%20G%201%201-4?unique=7de3c89)
|
Type number: 398.07 |
108.54 € | |
![[103425] RIEGLER Stainless steel ball valve, 1-piece, Reduced passage, G 1/2](/web/image/product.template/171391/image_128/%5B103425%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%201-piece%2C%20Reduced%20passage%2C%20G%201-2?unique=3149740)
|
Type number: 398.04 |
44.45 € | |
![[103430] RIEGLER Stainless steel ball valve, 1-piece, Reduced passage, G 2](/web/image/product.template/171396/image_128/%5B103430%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%201-piece%2C%20Reduced%20passage%2C%20G%202?unique=424abc8)
|
Type number: 398.09 |
197.02 € | |
![[103426] RIEGLER Stainless steel ball valve, 1-piece, Reduced passage, G 3/4](/web/image/product.template/171392/image_128/%5B103426%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%201-piece%2C%20Reduced%20passage%2C%20G%203-4?unique=b358b95)
|
Type number: 398.05 |
54.72 € | |
