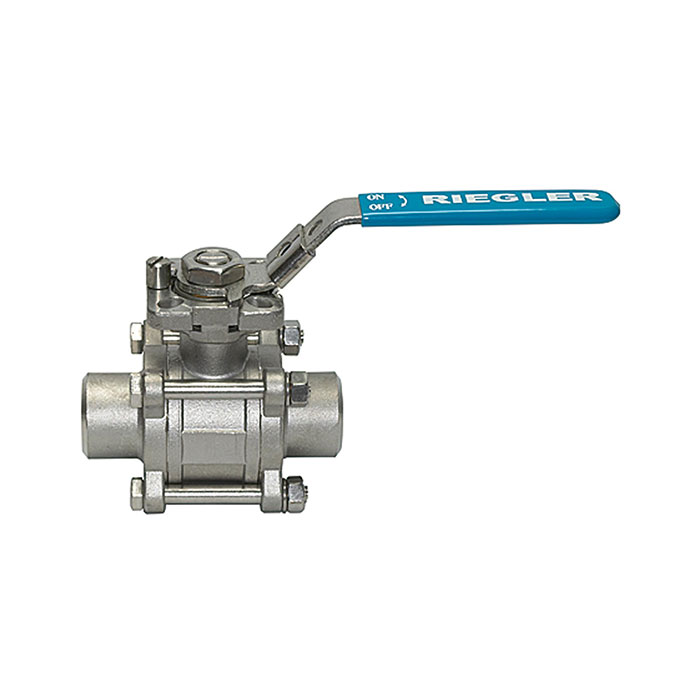

RIEGLER Stainless steel ball valve, weld-on studs, for tube O.D. 21.3 mm
Type number: 391.03
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Stainless steel ball valve, 3-pcs., weld-on studs, Full passage, Operat. temp. -20°C to 150°C, PN max. 63 bar, f. tube O.D. 21.3mm
| Housing | Stainless steel 1.4408 |
| Ball | Stainless steel 1.4408 |
| Ball seal | RPTFE (15% glass fiber reinforced) |
| Spindle seal | RPTFE (15% glass fiber reinforced) |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Operating pressure | max. 63 bar (depending on temperature) |
| A | 123 mm |
| B | 74 mm |
| L | 75 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| ISO 5211 | F 03 / F 04 |
| Class name | STAINLESS STEEL |
| Bore diameter padlock | approx. 7.5 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103455] RIEGLER Stainless steel ball valve, weld-on studs, for tube O.D. 17 mm](/web/image/product.template/171418/image_128/%5B103455%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20weld-on%20studs%2C%20for%20tube%20O.D.%2017%20mm?unique=fa08812)
|
Type number: 391.01 |
57.16 € | |
![[103456] RIEGLER Stainless steel ball valve, weld-on studs, for tube O.D. 17 mm](/web/image/product.template/171419/image_128/%5B103456%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20weld-on%20studs%2C%20for%20tube%20O.D.%2017%20mm?unique=0e89ce8)
|
Type number: 391.02 |
57.57 € | |
![[103458] RIEGLER Stainless steel ball valve, weld-on studs, for tube O.D. 26.7 mm](/web/image/product.template/171421/image_128/%5B103458%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20weld-on%20studs%2C%20for%20tube%20O.D.%2026.7%20mm?unique=5d8e632)
|
Type number: 391.04 |
72.08 € | |
![[103459] RIEGLER Stainless steel ball valve, weld-on studs, for tube O.D. 33.6 mm](/web/image/product.template/171422/image_128/%5B103459%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20weld-on%20studs%2C%20for%20tube%20O.D.%2033.6%20mm?unique=6d6b5f7)
|
Type number: 391.05 |
95.28 € | |
![[103460] RIEGLER Stainless steel ball valve, weld-on studs, for tube O.D. 42.4 mm](/web/image/product.template/171423/image_128/%5B103460%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20weld-on%20studs%2C%20for%20tube%20O.D.%2042.4%20mm?unique=b70f4b5)
|
Type number: 391.06 |
136.09 € | |
![[103461] RIEGLER Stainless steel ball valve, weld-on studs, for tube O.D. 48 mm](/web/image/product.template/171424/image_128/%5B103461%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20weld-on%20studs%2C%20for%20tube%20O.D.%2048%20mm?unique=44ec6b9)
|
Type number: 391.07 |
195.71 € | |
![[103462] RIEGLER Stainless steel ball valve, weld-on studs, for tube O.D. 60.5 mm](/web/image/product.template/171425/image_128/%5B103462%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20weld-on%20studs%2C%20for%20tube%20O.D.%2060.5%20mm?unique=8c01687)
|
Type number: 391.08 |
277.63 € | |
