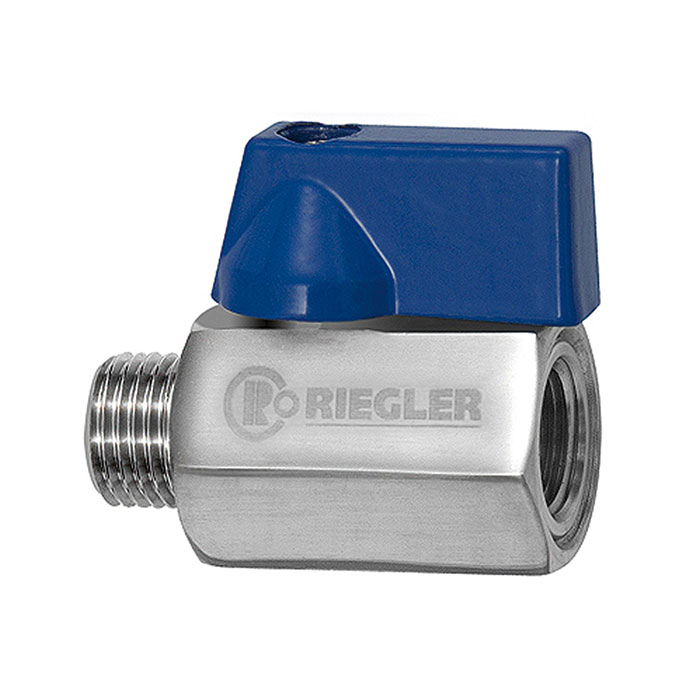

RIEGLER Mini ball valve, Stainless steel 1.4408 CF8M, IT/ET, G 3/8, DN 10
Type number: 377.02-ES
EAN: 4047322263603
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Mini ball valve, stainless steel 1.4408 CF8M, IG/AG, operating temperature -20 °C to 120 °C, G 3/8, DN 10, PN max. 63 bar
| Sealing material | FKM |
| Max. operating pressure | 63 bar |
| Material | Stainless steel 1.4408 CF8M |
| Ball seal | PTFE |
| Spindle | Stainless steel 1.4408 CF8M |
| Rotary handle | Aluminum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 120 °C |
| Thread | G 3/8 |
| DN | 10 |
| A | 22.8 mm |
| B | 26.5 mm |
| L | 42 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
