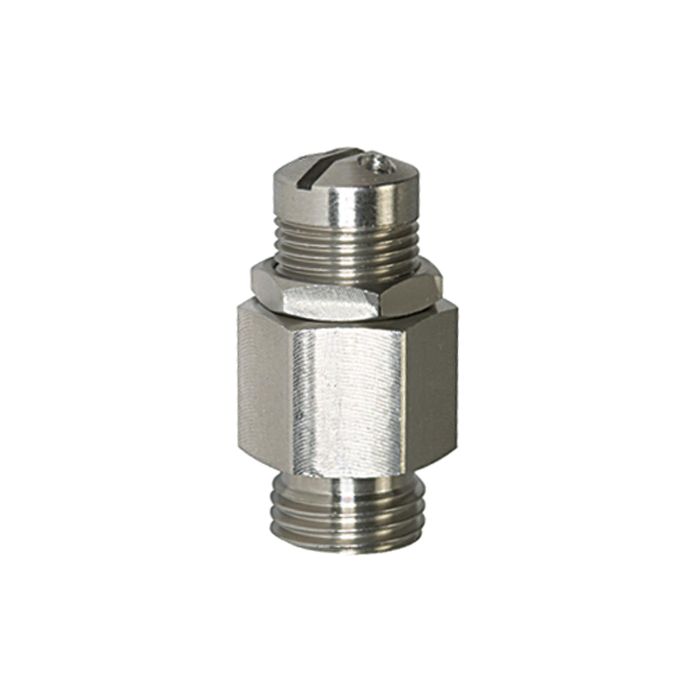

RIEGLER Mini bleeder valve, 1.4305, G 1/8, Trigger pressure 10 - 18 bar
Type number: 218.14-ES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
103919EAN :
4047322210997Category :
Safety valves & pressure relief valvesWeight :
0.03 kgMini bleeder valve, Stainless steel, not component checked, Operating temp. -20 °C to 180 °C, G 1/8, Trigger pressure 10 - 18 bar
| Sealing material | FKM |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 60 bar |
| Material | Stainless steel 1.4305 |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Spring | Stainless steel 1.4310 |
| Thread | G 1/8 |
| SW | 16 mm |
| Response pressure min. | 10 bar |
| Response pressure max. | 18 bar |
| Max. blow-off capacity | 870 l/min |
| C | 27 mm |
| D | 7 mm |
| do | 3 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103915] RIEGLER Mini bleeder valve, 1.4305, G 1/8, Trigger pressure 0.5 - 1 bar](/web/image/product.template/171863/image_128/%5B103915%5D%20RIEGLER%20Mini%20bleeder%20valve%2C%201.4305%2C%20G%201-8%2C%20Trigger%20pressure%200.5%20-%201%20bar?unique=0e1db48)
|
Type number: 218.10-ES |
22.26 € | |
![[103916] RIEGLER Mini bleeder valve, 1.4305, G 1/8, Trigger pressure 1 - 4 bar](/web/image/product.template/171864/image_128/%5B103916%5D%20RIEGLER%20Mini%20bleeder%20valve%2C%201.4305%2C%20G%201-8%2C%20Trigger%20pressure%201%20-%204%20bar?unique=5756d24)
|
Type number: 218.11-ES |
22.26 € | |
![[103920] RIEGLER Mini bleeder valve, 1.4305, G 1/8, Trigger pressure 16 - 32 bar](/web/image/product.template/171868/image_128/%5B103920%5D%20RIEGLER%20Mini%20bleeder%20valve%2C%201.4305%2C%20G%201-8%2C%20Trigger%20pressure%2016%20-%2032%20bar?unique=268c417)
|
Type number: 218.15-ES |
22.26 € | |
![[103921] RIEGLER Mini bleeder valve, 1.4305, G 1/8, Trigger pressure 30 - 60 bar](/web/image/product.template/171869/image_128/%5B103921%5D%20RIEGLER%20Mini%20bleeder%20valve%2C%201.4305%2C%20G%201-8%2C%20Trigger%20pressure%2030%20-%2060%20bar?unique=ea99f93)
|
Type number: 218.16-ES |
22.26 € | |
![[103917] RIEGLER Mini bleeder valve, 1.4305, G 1/8, Trigger pressure 3 - 7 bar](/web/image/product.template/171865/image_128/%5B103917%5D%20RIEGLER%20Mini%20bleeder%20valve%2C%201.4305%2C%20G%201-8%2C%20Trigger%20pressure%203%20-%207%20bar?unique=20fcafe)
|
Type number: 218.12-ES |
22.26 € | |
![[103918] RIEGLER Mini bleeder valve, 1.4305, G 1/8, Trigger pressure 6 - 12 bar](/web/image/product.template/171866/image_128/%5B103918%5D%20RIEGLER%20Mini%20bleeder%20valve%2C%201.4305%2C%20G%201-8%2C%20Trigger%20pressure%206%20-%2012%20bar?unique=3f5412b)
|
Type number: 218.13-ES |
22.26 € | |
