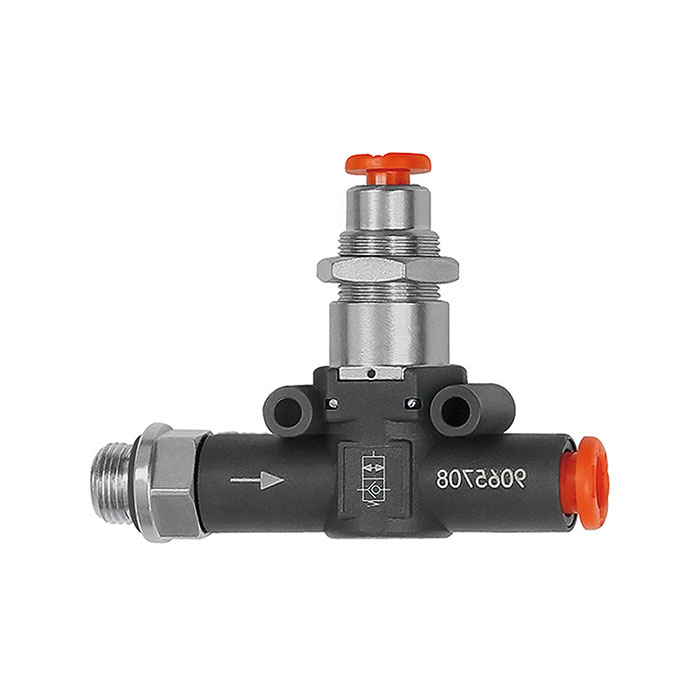

RIEGLER Pneumatically releasable check valve, thread - hose, G 1/4 hose 6
Type number: 494.014-6
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
106823EAN :
4047322390187Weight :
0.05 kgPneumatically releasable check valve »lineonline«, Thread - hose, G 1/4, for hose Ø 6 mm, Operating pressure max. 10 bar
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Pilot air connection | 4 mm |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Thread | G 1/4 |
| for hose Ø | 6 mm |
| A | 61.5 mm |
| B | 43.2 mm |
| Flow rate at 6.3 bar and Î "p 1.0 bar | 400 Nl/min |
| I | 14.6 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106824] RIEGLER Pneumatically releasable check valve, thread - hose, G 1/4 hose 8](/web/image/product.template/175881/image_128/%5B106824%5D%20RIEGLER%20Pneumatically%20releasable%20check%20valve%2C%20thread%20-%20hose%2C%20G%201-4%20hose%208?unique=7bc8f8b)
|
Type number: 494.014-8 |
30.71 € | |
![[106821] RIEGLER Pneumatically releasable check valve, thread - hose, G 1/8 hose 6](/web/image/product.template/175878/image_128/%5B106821%5D%20RIEGLER%20Pneumatically%20releasable%20check%20valve%2C%20thread%20-%20hose%2C%20G%201-8%20hose%206?unique=04535d2)
|
Type number: 494.018-6 |
29.43 € | |
![[106822] RIEGLER Pneumatically releasable check valve, thread - hose, G 1/8 hose 8](/web/image/product.template/175879/image_128/%5B106822%5D%20RIEGLER%20Pneumatically%20releasable%20check%20valve%2C%20thread%20-%20hose%2C%20G%201-8%20hose%208?unique=a9fb452)
|
Type number: 494.018-8 |
30.14 € | |
![[106825] RIEGLER Pneumatically releasable check valve, thread - hose, G 3/8 hose 8](/web/image/product.template/175882/image_128/%5B106825%5D%20RIEGLER%20Pneumatically%20releasable%20check%20valve%2C%20thread%20-%20hose%2C%20G%203-8%20hose%208?unique=f43052d)
|
Type number: 494.038-8 |
31.38 € | |
