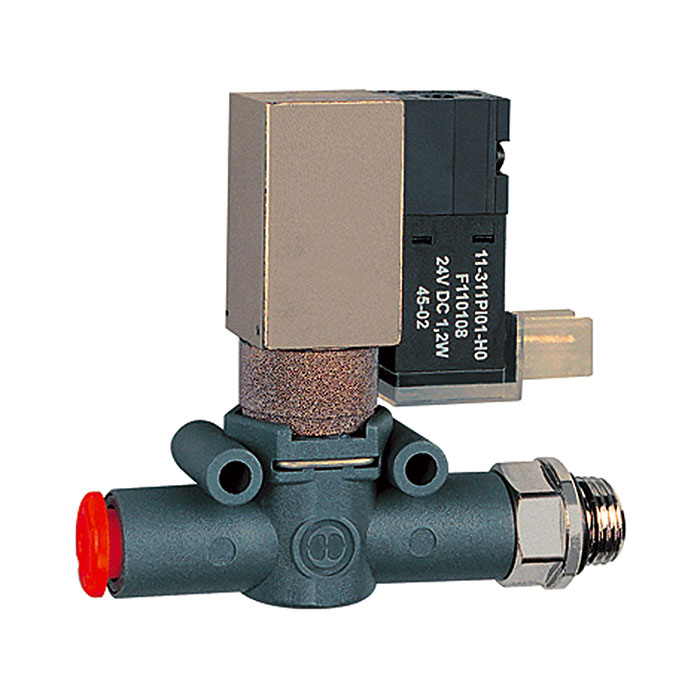

RIEGLER 3/2-way solenoid valve silenced venting, G 1/4, NC, hose 6
Type number: 484.014-6
EAN: 4047322092920
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
106853EAN :
4047322092920Weight :
0.06 kg3/2-way solenoid valve "lineonline" Vent. silenced, hose thread, G 1/4, Ø 6, NC, 24 V DC, operating pressure 2.5-7 bar
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Power consumption | 1,2 W |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 7 bar |
| Operating voltage | 24 V DC |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Thread | G 1/4 |
| Function | NC |
| for hose Ø | 6 mm |
| A | 61.3 mm |
| B | 57.5 mm |
| Flow rate at 6.3 bar and Î "p 1.0 bar | 380 Nl/min |
| I | 14.6 mm |
| Class name | PLUS |
