RIEGLER Throttle check valve, Discharge throttle (C) G 1/2 i., G 1/2

Price:

26.39 €
    ​
English (US)
  2. Shop
  3. Unidirectional Flow Control Valves
  4. RIEGLER Throttle check valve, Discharge throttle (C) G 1/2 i., G 1/2
RIEGLER Thredtle check valve, supply air, M5, plug connection 4
RIEGLER Thredtle check valve, supply air, M5, plug connection 4
8.83 € 8.83 €
RIEGLER Throttle check valve, Discharge throttle (C) G 1/2 IT, G 1/2
RIEGLER Throttle check valve, Discharge throttle (C) G 1/2 IT, G 1/2
27.85 € 27.85 €

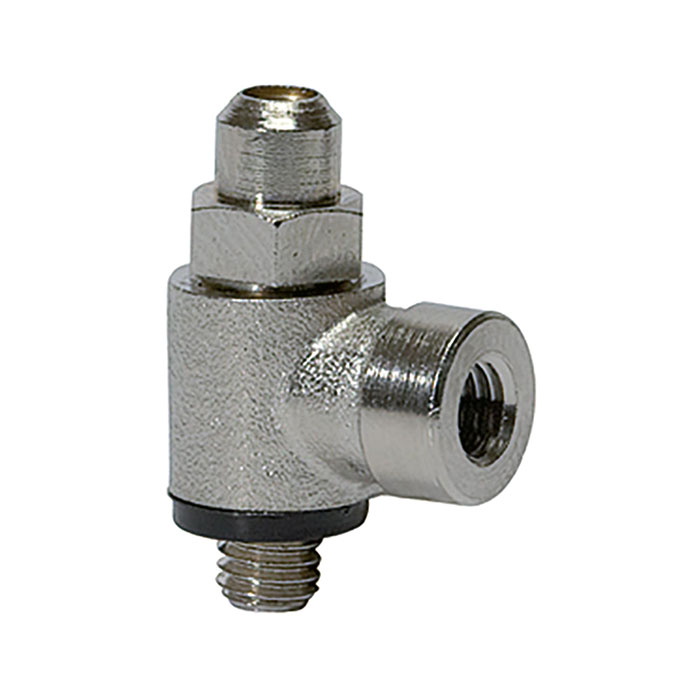

RIEGLER Throttle check valve, Discharge throttle (C) G 1/2 i., G 1/2

https://www.filcom-technik.de/web/image/product.template/175980/image_1920?unique=8929e2c

Type number: 358.012-1/2

EAN: 4047322393768

26.39 € 26.39 EUR 26.39 € VAT Included

34.12 € VAT Included

Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.

Product no. :

106923

EAN :

4047322393768

Category :

Unidirectional Flow Control Valves

Weight :

0.17 kg

Throttle check valve, exhaust air throttling (C) Threaded connection G 1/2 i., G 1/2, PN max. 10 bar, temp. -20 °C to 80 °C, MS nickel-plated

Temperature range min. -20 °C
Temperature range max. 80 °C
Sealing material NBR
Operating pressure min. 0 bar
Max. operating pressure 10 bar
Base body Nickel-plated brass
Captive seals Polyamide glass fiber reinforced (only parts in hollow screw design)
Silicone-free Yes
Thread G 1/2
SW 26 mm
Function Exhaust air throttling (C)
Connection type Threaded connection
B 61 mm
C 32 mm
Execution adjustable with slotted screw
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
Connection G 1/2 IG
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N, CW617N
Class name PLUS
Construction method Banjo bolt design

Variants / Alternatives

Product Price

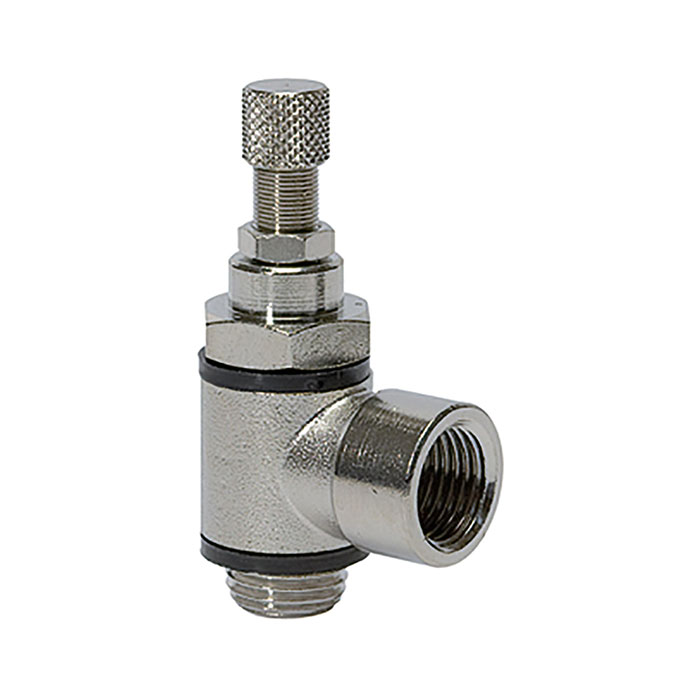

[106947] RIEGLER Throttle check valve, Discharge throttle (C) G 1/2 IT, G 1/2

Type number: 333.012-1/2

EAN: 4047322393805

 27.85 €
