RIEGLER Compact pressure regulator, Push-in connector for hose 8, G 1/8

Price:

25.07 €

RIEGLER Compact pressure regulator, Push-in connector for hose 8, G 1/4
RIEGLER Compact pressure regulator, Push-in connector for hose 8, G 1/4
25.07 € 25.07 €
RIEGLER Pressure gauge, Thread (inlet) - hose (outlet), G 1/4, hose Ø 6
RIEGLER Pressure gauge, Thread (inlet) - hose (outlet), G 1/4, hose Ø 6
24.38 € 24.38 €

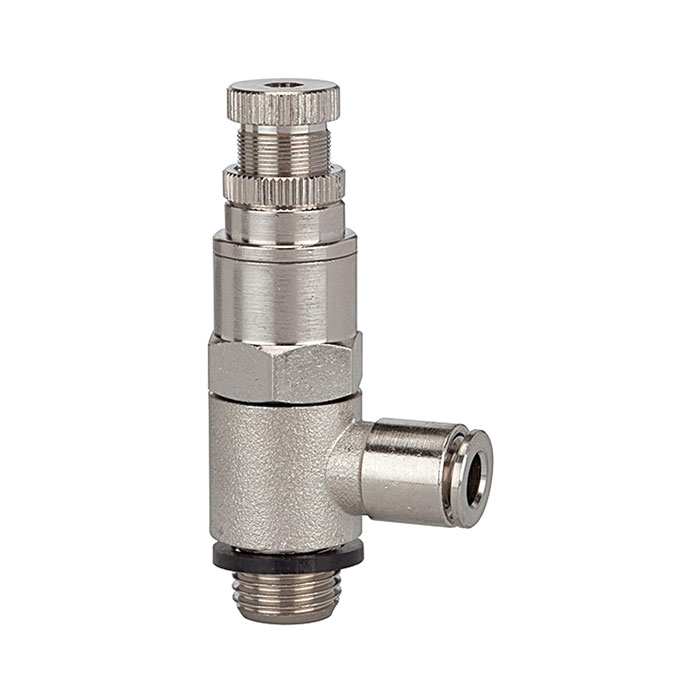

RIEGLER Compact pressure regulator, Push-in connector for hose 8, G 1/8

https://www.filcom-technik.de/web/image/product.template/176104/image_1920?unique=efec5d9

Type number: 3621.018-8

EAN: 4047322181716

25.07 € 25.07 EUR 25.07 € VAT Included

32.41 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

107047

EAN :

4047322181716

Weight :

0.05 kg

Micro pressure regulator, push-in connector for hose 8, G 1/8, control range 0 - 8 bar, temp. 0 °C to 70 °C, nickel-plated brass.

Inlet pressure max. 10 bar
Temperature range min. 0 °C
Temperature range max. 70 °C
Sealing material NBR
Interior parts Brass bright
Banjo bolt Nickel-plated brass
Swivel arm Nickel-plated brass
Adjusting screw Nickel-plated brass
Captive seals Polyamide glass fiber reinforced
Thread G 1/8
Control range min. 0 bar
Control range max. 8 bar
SW 15 mm
for hose 8 mm
B 56 mm
C 22.5 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N, CW617N
Class name PLUS
