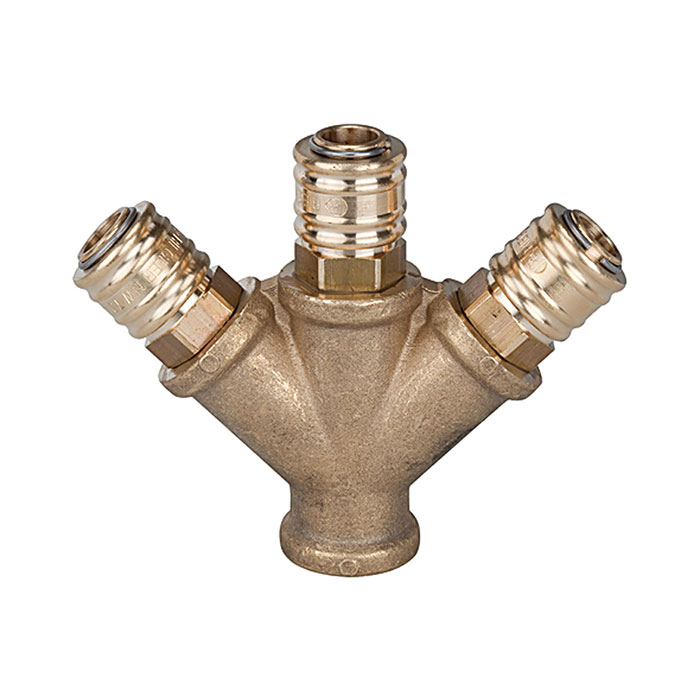

RIEGLER Distributor with 3 quick-connect couplings I.D. 7.2, G 1/4 IT
Type number: 245.56
EAN: 4047322061230
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Manifold with 3 quick-release couplings NW 7.2, bare brass, G 1/4 female thread, operating pressure 0 - 35 bar, temp. -20 °C to 100 °C
| Housing | Brass bright |
| Sealing material | Industrial adhesive, medium strength |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 35 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Fuse | Industrial adhesive, medium strength |
| Height | 96 mm |
| Width | 115 mm |
| consisting of distributor | Brass bright, G 3/8 IG |
| Couplings | NW 7.2, bare brass, G 3/8 AG |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 FEMALE THREAD |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
