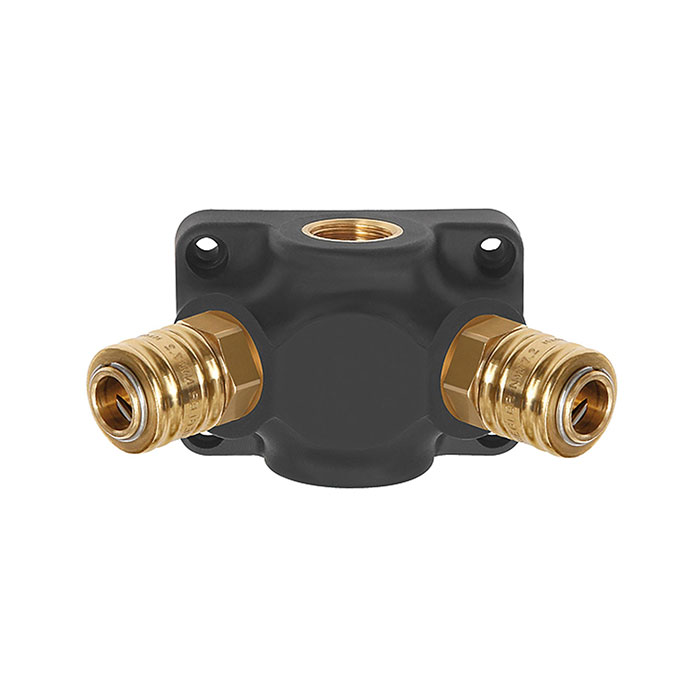

RIEGLER End distributor socket, G 1/2, 2 stand.Coupl. I.D. 7.2, max.15bar
Type number: EVDK12-2
EAN: 4047322401630
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
End distribution box, 2 standard couplings NW 7.2, inlet thread G 1/2, max. operating pressure 15 bar, ambient temp. -10 °C to 50 °C
| Housing | glass fiber reinforced plastic PA6 GF 30 |
| Max. operating pressure | 15 bar |
| Tightening torque brass thread | 12 Nm |
| Tightening torque | 4 Nm |
| Height | 59 mm |
| Width | 120 mm |
| Input thread | G 1/2 |
| Connection coupling | 2 x brass coupling |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Thread material | Brass |
| Class name | PLUS |
