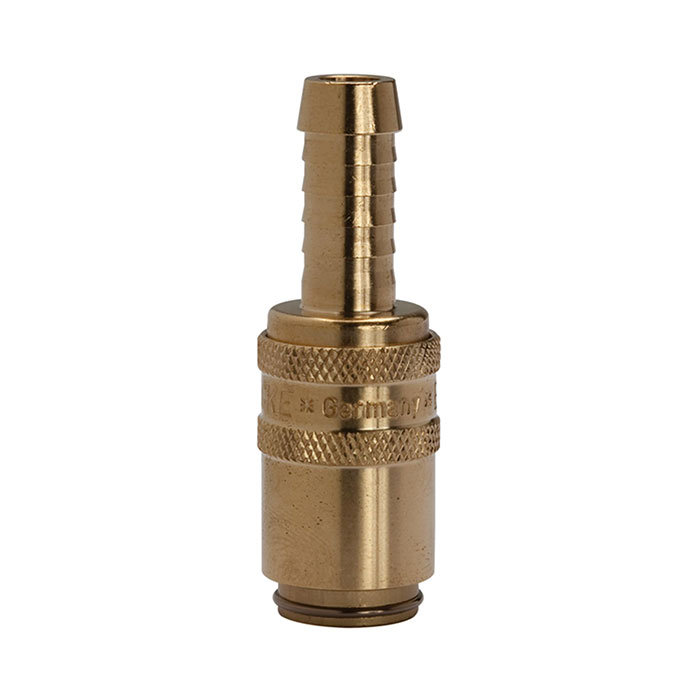

RIEGLER Tempered coupling DN 6, Taps 9 mm, Brass, Hose sleeve straight
Type number: 270.11
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Tempered coupling DN 6, Taps 9 mm, Brass, Hose sleeve straight, Operating pressure max. 15 bar, Med./ambient temp. -20°C to 160°C
| Medium | Air, water, oil, vacuum |
| Sealing material | FKM (PTFE-coated) |
| Max. operating pressure | 15 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 160 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 160 °C |
| Material | Brass 2.0401 |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Snap ring | Stainless steel |
| Length | 53 mm |
| Hose nozzle version | straight |
| Hose connection | 9 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

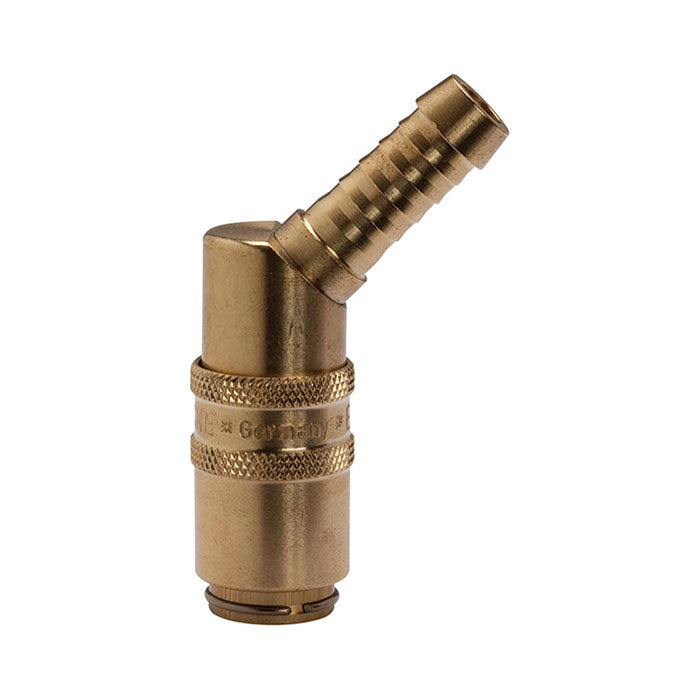

![[107915] RIEGLER Tempered coupling DN 6, Taps 9 mm, Brass, Hose sleeve 45°](/web/image/product.template/191816/image_128/%5B107915%5D%20RIEGLER%20Tempered%20coupling%20DN%206%2C%20Taps%209%20mm%2C%20Brass%2C%20Hose%20sleeve%2045%C2%B0?unique=4b4df69)
|
Type number: 270.12 |
15.35 € | |

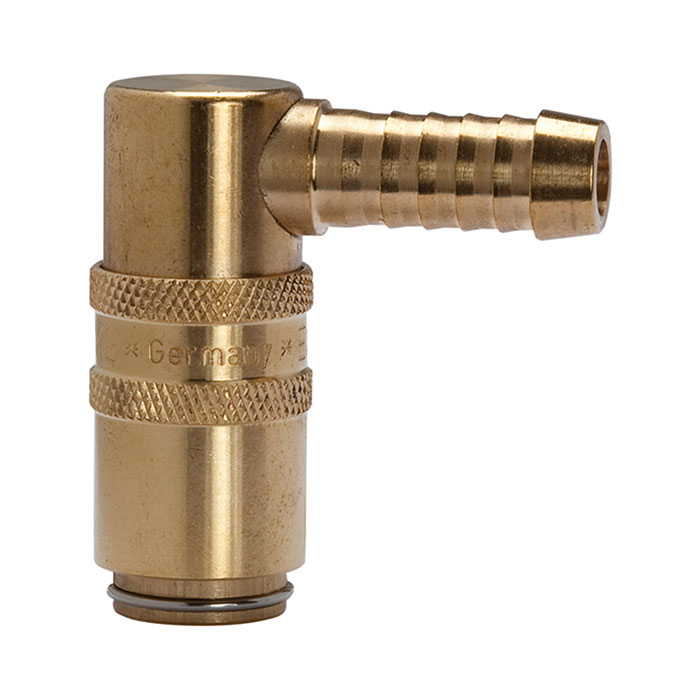

![[107916] RIEGLER Tempered coupling DN 6, Taps 9 mm, Brass, Hose sleeve 90°](/web/image/product.template/191817/image_128/%5B107916%5D%20RIEGLER%20Tempered%20coupling%20DN%206%2C%20Taps%209%20mm%2C%20Brass%2C%20Hose%20sleeve%2090%C2%B0?unique=27c6bd2)
|
Type number: 270.13 |
15.35 € | |
