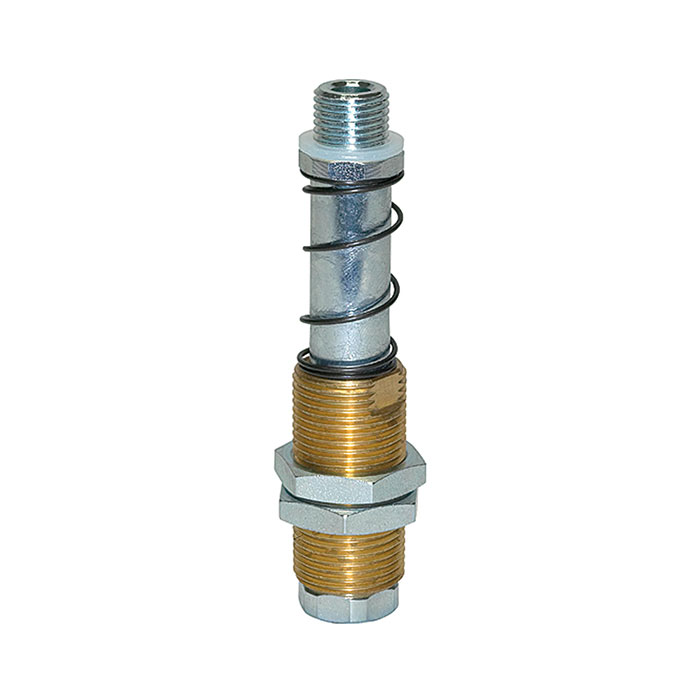

RIEGLER Spring plunger, Suction connection G 1/8 ET, Spring travel 50 mm
Type number: FS 1818-50
EAN: 4047322200912
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Spring plunger, suction/vacuum connection G 1/8 AG, G 1/8 IG, spring travel 50.0 mm, operating temperature 0 °C to 80 °C
| Operating temperature min. | 0 °C |
| Operating temperature max. | 80 °C |
| Length | 124 mm |
| Vacuum connection | G 1/8 FEMALE THREAD |
| Suction cup connection | G 1/8 AG |
| Spring travel | 50 mm |
| Spring rate | 0.097 N/mm |
| Spring preload | 2.92 N |
| Spring force | 5.34 N |
| Vertical load | 3700 N |
| Horizontal load | 173 N |
| Weight | 110 g |
