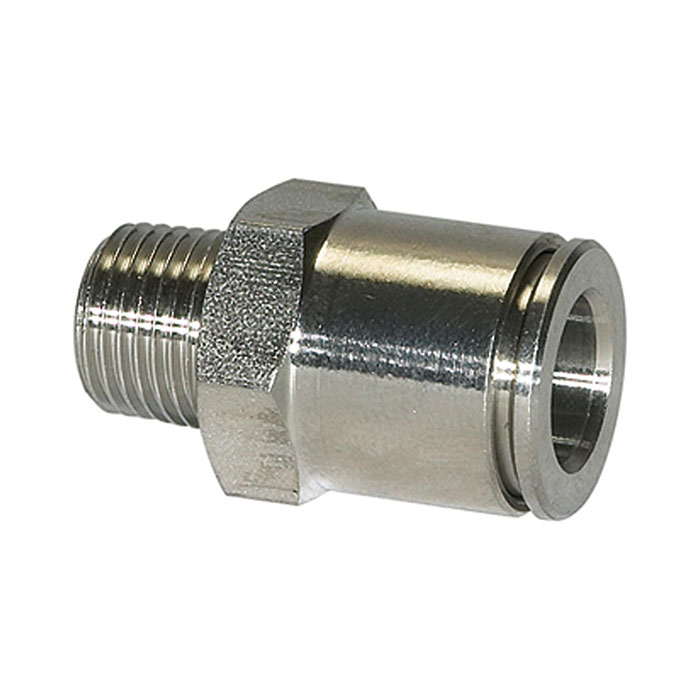

RIEGLER Straight push-in fitting, R 1/2 o., for hose exterior Ø 12 mm
Type number: 45.012-12 ES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Straight push-in fitting, Exterior hexagonal, R 1/2 o., for hose exterior Ø 12 mm, Working pressure max. 15 bar, Stainless steel
| Sealing material | FKM |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 150 °C |
| Working pressure max. | 15 bar |
| Material | Stainless steel 1.4404 |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Suitable pipe material | PVDF, PTFE, PA, PU |
| Working pressure pulsating | 10 bar |
| Thread | R 1/2 |
| SW 1 | 10 mm |
| SW | 22 mm |
| External hexagon | with |
| Thread standard | ISO 7-1 |
| for hose outer Ø | 12 mm |
| Execution | External thread conical |
| L1 | 27.4 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
