RIEGLER Round cylinder »MSI« single-acting, PistonØ 10, Stroke 10, M5x0.8
Type number: 11.EM.10010
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.

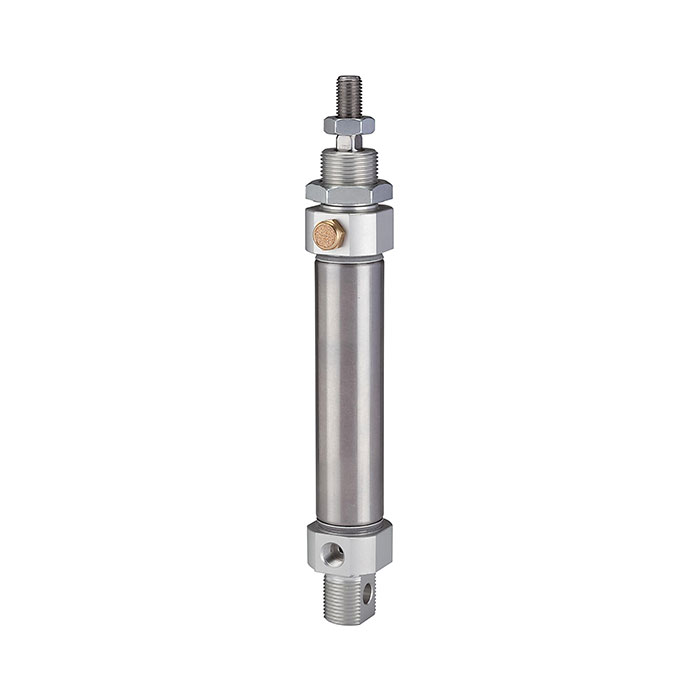

Round cylinder »MSI«, single-acting, Magnet, Piston Ø 10, Stroke 10, M5x0.8, Working pressure 2 - 10 bar, Temp. -20 °C to 70 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | MSI series |
| Working pressure min. | 2 bar |
| Working pressure max. | 10 bar |
| Pipe | Stainless steel 1.4301 |
| Type | Type CA |
| Piston Ø | 10 mm |
| Function | single-acting |
| Stroke | 10 mm |
| Piston rods AG | M4x0.7 |
| Piston rod Ø | 4 mm |
| Connection | M5x0.8 |
| Piston rod | Stainless steel 1.4301 |
| Piston | Stainless steel 1.4305 |
| Class name | EASY |
| Magnet | with magnet |
| Starting position | retracted without pressure |
| Damping | without adjustable damping |
| Thread piston rod | External thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[114935] RIEGLER Round cylinder »MSI« single-acting, PistonØ 10, Stroke 15, M5x0.8](/web/image/product.template/198505/image_128/%5B114935%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2010%2C%20Stroke%2015%2C%20M5x0.8?unique=0da014d)
|
Type number: 11.EM.10015 |
32.05 € | |
![[114936] RIEGLER Round cylinder »MSI« single-acting, PistonØ 10, Stroke 20, M5x0.8](/web/image/product.template/198506/image_128/%5B114936%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2010%2C%20Stroke%2020%2C%20M5x0.8?unique=fd361b3)
|
Type number: 11.EM.10020 |
32.05 € | |
![[114937] RIEGLER Round cylinder »MSI« single-acting, PistonØ 10, Stroke 25, M5x0.8](/web/image/product.template/198507/image_128/%5B114937%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2010%2C%20Stroke%2025%2C%20M5x0.8?unique=7970bd3)
|
Type number: 11.EM.10025 |
32.05 € | |
![[114938] RIEGLER Round cylinder »MSI« single-acting, PistonØ 10, Stroke 30, M5x0.8](/web/image/product.template/198508/image_128/%5B114938%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2010%2C%20Stroke%2030%2C%20M5x0.8?unique=6590ffc)
|
Type number: 11.EM.10030 |
32.58 € | |
![[114939] RIEGLER Round cylinder »MSI« single-acting, PistonØ 10, Stroke 40, M5x0.8](/web/image/product.template/198509/image_128/%5B114939%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2010%2C%20Stroke%2040%2C%20M5x0.8?unique=c0188e5)
|
Type number: 11.EM.10040 |
32.58 € | |
![[114940] RIEGLER Round cylinder »MSI« single-acting, PistonØ 10, Stroke 50, M5x0.8](/web/image/product.template/198510/image_128/%5B114940%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2010%2C%20Stroke%2050%2C%20M5x0.8?unique=6549692)
|
Type number: 11.EM.10050 |
32.58 € | |
![[114941] RIEGLER Round cylinder »MSI« single-acting, PistonØ 12, Stroke 10, M5x0.8](/web/image/product.template/198511/image_128/%5B114941%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2012%2C%20Stroke%2010%2C%20M5x0.8?unique=005db7c)
|
Type number: 11.EM.12010 |
33.68 € | |
![[114942] RIEGLER Round cylinder »MSI« single-acting, PistonØ 12, Stroke 15, M5x0.8](/web/image/product.template/198512/image_128/%5B114942%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2012%2C%20Stroke%2015%2C%20M5x0.8?unique=8f2385e)
|
Type number: 11.EM.12015 |
34.01 € | |
![[114943] RIEGLER Round cylinder »MSI« single-acting, PistonØ 12, Stroke 20, M5x0.8](/web/image/product.template/198513/image_128/%5B114943%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2012%2C%20Stroke%2020%2C%20M5x0.8?unique=82b3cbc)
|
Type number: 11.EM.12020 |
34.01 € | |
![[114944] RIEGLER Round cylinder »MSI« single-acting, PistonØ 12, Stroke 25, M5x0.8](/web/image/product.template/198514/image_128/%5B114944%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2012%2C%20Stroke%2025%2C%20M5x0.8?unique=c338e59)
|
Type number: 11.EM.12025 |
34.01 € | |
![[114945] RIEGLER Round cylinder »MSI« single-acting, PistonØ 12, Stroke 30, M5x0.8](/web/image/product.template/198515/image_128/%5B114945%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2012%2C%20Stroke%2030%2C%20M5x0.8?unique=50caf8f)
|
Type number: 11.EM.12030 |
34.44 € | |
![[114946] RIEGLER Round cylinder »MSI« single-acting, PistonØ 12, Stroke 40, M5x0.8](/web/image/product.template/198516/image_128/%5B114946%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2012%2C%20Stroke%2040%2C%20M5x0.8?unique=a9f011f)
|
Type number: 11.EM.12040 |
34.44 € | |
![[114947] RIEGLER Round cylinder »MSI« single-acting, PistonØ 12, Stroke 50, M5x0.8](/web/image/product.template/198517/image_128/%5B114947%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2012%2C%20Stroke%2050%2C%20M5x0.8?unique=35f114a)
|
Type number: 11.EM.12050 |
35.31 € | |
![[114958] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 100 M5x0.8](/web/image/product.template/198528/image_128/%5B114958%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%20100%20M5x0.8?unique=bf6730c)
|
Type number: 11.EM.16100 |
42.40 € | |
![[114948] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 10, M5x0.8](/web/image/product.template/198518/image_128/%5B114948%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2010%2C%20M5x0.8?unique=972e017)
|
Type number: 11.EM.16010 |
35.51 € | |
![[114949] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 15, M5x0.8](/web/image/product.template/198519/image_128/%5B114949%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2015%2C%20M5x0.8?unique=5f8e779)
|
Type number: 11.EM.16015 |
36.50 € | |
![[114950] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 20, M5x0.8](/web/image/product.template/198520/image_128/%5B114950%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2020%2C%20M5x0.8?unique=53f5fa6)
|
Type number: 11.EM.16020 |
36.50 € | |
![[114951] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 25, M5x0.8](/web/image/product.template/198521/image_128/%5B114951%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2025%2C%20M5x0.8?unique=07b2080)
|
Type number: 11.EM.16025 |
36.50 € | |
![[114952] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 30, M5x0.8](/web/image/product.template/198522/image_128/%5B114952%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2030%2C%20M5x0.8?unique=e785160)
|
Type number: 11.EM.16030 |
38.26 € | |
![[114953] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 40, M5x0.8](/web/image/product.template/198523/image_128/%5B114953%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2040%2C%20M5x0.8?unique=0c6076e)
|
Type number: 11.EM.16040 |
38.26 € | |
![[114954] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 50, M5x0.8](/web/image/product.template/198524/image_128/%5B114954%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2050%2C%20M5x0.8?unique=1c94888)
|
Type number: 11.EM.16050 |
38.26 € | |
![[114955] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 60, M5x0.8](/web/image/product.template/198525/image_128/%5B114955%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2060%2C%20M5x0.8?unique=5efafa1)
|
Type number: 11.EM.16060 |
42.40 € | |
![[114956] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 75, M5x0.8](/web/image/product.template/198526/image_128/%5B114956%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2075%2C%20M5x0.8?unique=e30a65a)
|
Type number: 11.EM.16075 |
42.40 € | |
![[114957] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 80, M5x0.8](/web/image/product.template/198527/image_128/%5B114957%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2080%2C%20M5x0.8?unique=803fccf)
|
Type number: 11.EM.16080 |
42.40 € | |
![[114969] RIEGLER Round cylinder »MSI« single-acting, PistonØ 20, Stroke 100, G 1/8](/web/image/product.template/198539/image_128/%5B114969%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2020%2C%20Stroke%20100%2C%20G%201-8?unique=3ecce9f)
|
Type number: 11.EM.20100 |
45.99 € | |
![[114959] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 10, G 1/8](/web/image/product.template/198529/image_128/%5B114959%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2010%2C%20G%201-8?unique=bfe1c08)
|
Type number: 11.EM.20010 |
42.40 € | |
![[114970] RIEGLER Round cylinder »MSI« single-acting, PistonØ 20, Stroke 125, G 1/8](/web/image/product.template/198540/image_128/%5B114970%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2020%2C%20Stroke%20125%2C%20G%201-8?unique=56602b0)
|
Type number: 11.EM.20125 |
46.64 € | |
![[114971] RIEGLER Round cylinder »MSI« single-acting, PistonØ 20, Stroke 150, G 1/8](/web/image/product.template/198541/image_128/%5B114971%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2020%2C%20Stroke%20150%2C%20G%201-8?unique=b895d6c)
|
Type number: 11.EM.20150 |
46.64 € | |
![[114960] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 15, G 1/8](/web/image/product.template/198530/image_128/%5B114960%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2015%2C%20G%201-8?unique=4cc1dcf)
|
Type number: 11.EM.20015 |
42.95 € | |
![[114961] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 20, G 1/8](/web/image/product.template/198531/image_128/%5B114961%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2020%2C%20G%201-8?unique=5178cdf)
|
Type number: 11.EM.20020 |
42.95 € | |
![[114962] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 25, G 1/8](/web/image/product.template/198532/image_128/%5B114962%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2025%2C%20G%201-8?unique=f7691e2)
|
Type number: 11.EM.20025 |
42.95 € | |
![[114963] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 30, G 1/8](/web/image/product.template/198533/image_128/%5B114963%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2030%2C%20G%201-8?unique=05220bb)
|
Type number: 11.EM.20030 |
44.24 € | |
![[114964] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 40, G 1/8](/web/image/product.template/198534/image_128/%5B114964%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2040%2C%20G%201-8?unique=87e0a0c)
|
Type number: 11.EM.20040 |
44.24 € | |
![[114965] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 50, G 1/8](/web/image/product.template/198535/image_128/%5B114965%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2050%2C%20G%201-8?unique=df63cf7)
|
Type number: 11.EM.20050 |
44.24 € | |
![[114966] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 60, G 1/8](/web/image/product.template/198536/image_128/%5B114966%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2060%2C%20G%201-8?unique=cf9c0c2)
|
Type number: 11.EM.20060 |
45.55 € | |
![[114967] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 75, G 1/8](/web/image/product.template/198537/image_128/%5B114967%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2075%2C%20G%201-8?unique=706dd9f)
|
Type number: 11.EM.20075 |
45.55 € | |
![[114968] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 80, G 1/8](/web/image/product.template/198538/image_128/%5B114968%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2080%2C%20G%201-8?unique=dc76871)
|
Type number: 11.EM.20080 |
45.99 € | |
![[114982] RIEGLER Round cylinder »MSI« single-acting, PistonØ 25, Stroke 100, G 1/8](/web/image/product.template/198552/image_128/%5B114982%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2025%2C%20Stroke%20100%2C%20G%201-8?unique=c7c096a)
|
Type number: 11.EM.25100 |
56.13 € | |
![[114972] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 10, G 1/8](/web/image/product.template/198542/image_128/%5B114972%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2010%2C%20G%201-8?unique=c0c20c2)
|
Type number: 11.EM.25010 |
46.86 € | |
![[114983] RIEGLER Round cylinder »MSI« single-acting, PistonØ 25, Stroke 125, G 1/8](/web/image/product.template/198553/image_128/%5B114983%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2025%2C%20Stroke%20125%2C%20G%201-8?unique=4edc359)
|
Type number: 11.EM.25125 |
57.55 € | |
![[114984] RIEGLER Round cylinder »MSI« single-acting, PistonØ 25, Stroke 150, G 1/8](/web/image/product.template/198554/image_128/%5B114984%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2025%2C%20Stroke%20150%2C%20G%201-8?unique=c396106)
|
Type number: 11.EM.25150 |
57.86 € | |
![[114973] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 15, G 1/8](/web/image/product.template/198543/image_128/%5B114973%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2015%2C%20G%201-8?unique=ef0c998)
|
Type number: 11.EM.25015 |
47.73 € | |
![[114974] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 20, G 1/8](/web/image/product.template/198544/image_128/%5B114974%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2020%2C%20G%201-8?unique=0cfbe31)
|
Type number: 11.EM.25020 |
47.73 € | |
![[114975] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 25, G 1/8](/web/image/product.template/198545/image_128/%5B114975%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2025%2C%20G%201-8?unique=3408288)
|
Type number: 11.EM.25025 |
48.06 € | |
![[114976] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 30, G 1/8](/web/image/product.template/198546/image_128/%5B114976%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2030%2C%20G%201-8?unique=192e632)
|
Type number: 11.EM.25030 |
49.92 € | |
![[114977] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 40, G 1/8](/web/image/product.template/198547/image_128/%5B114977%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2040%2C%20G%201-8?unique=2b70e3c)
|
Type number: 11.EM.25040 |
49.92 € | |
![[114978] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 50, G 1/8](/web/image/product.template/198548/image_128/%5B114978%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2050%2C%20G%201-8?unique=5bd19a0)
|
Type number: 11.EM.25050 |
50.13 € | |
![[114979] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 60, G 1/8](/web/image/product.template/198549/image_128/%5B114979%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2060%2C%20G%201-8?unique=87175b5)
|
Type number: 11.EM.25060 |
52.54 € | |
![[114980] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 75, G 1/8](/web/image/product.template/198550/image_128/%5B114980%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2075%2C%20G%201-8?unique=7baa6e9)
|
Type number: 11.EM.25075 |
53.94 € | |
![[114981] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 80, G 1/8](/web/image/product.template/198551/image_128/%5B114981%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2080%2C%20G%201-8?unique=65c2f0f)
|
Type number: 11.EM.25080 |
55.14 € | |
![[114927] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 8, Stroke 10, M5x0.8](/web/image/product.template/198497/image_128/%5B114927%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%208%2C%20Stroke%2010%2C%20M5x0.8?unique=7a647c9)
|
Type number: 11.EM.08010 |
31.17 € | |
![[114928] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 8, Stroke 15, M5x0.8](/web/image/product.template/198498/image_128/%5B114928%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%208%2C%20Stroke%2015%2C%20M5x0.8?unique=54df476)
|
Type number: 11.EM.08015 |
31.17 € | |
![[114929] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 8, Stroke 20, M5x0.8](/web/image/product.template/198499/image_128/%5B114929%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%208%2C%20Stroke%2020%2C%20M5x0.8?unique=4dc5206)
|
Type number: 11.EM.08020 |
31.17 € | |
![[114930] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 8, Stroke 25, M5x0.8](/web/image/product.template/198500/image_128/%5B114930%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%208%2C%20Stroke%2025%2C%20M5x0.8?unique=8386fe4)
|
Type number: 11.EM.08025 |
31.17 € | |
![[114931] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 8, Stroke 30, M5x0.8](/web/image/product.template/198501/image_128/%5B114931%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%208%2C%20Stroke%2030%2C%20M5x0.8?unique=693fb91)
|
Type number: 11.EM.08030 |
31.62 € | |
![[114932] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 8, Stroke 40, M5x0.8](/web/image/product.template/198502/image_128/%5B114932%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%208%2C%20Stroke%2040%2C%20M5x0.8?unique=7d3e839)
|
Type number: 11.EM.08040 |
31.62 € | |
![[114933] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 8, Stroke 50, M5x0.8](/web/image/product.template/198503/image_128/%5B114933%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%208%2C%20Stroke%2050%2C%20M5x0.8?unique=6c4630b)
|
Type number: 11.EM.08050 |
31.62 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[115548] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 10](/web/image/product.template/200307/image_128/%5B115548%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2010?unique=77adbb9)
|
Type number: 235.311 |
11.00 € | |
![[115556] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 10](/web/image/product.template/200315/image_128/%5B115556%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2010?unique=bee884a)
|
Type number: 235.321 |
27.12 € | |
![[115564] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 10](/web/image/product.template/200323/image_128/%5B115564%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2010?unique=e3b171f)
|
Type number: 235.331 |
23.44 € | |
![[115572] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 10](/web/image/product.template/200331/image_128/%5B115572%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2010?unique=752557b)
|
Type number: 235.341 |
27.12 € | |
![[115580] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 10](/web/image/product.template/200339/image_128/%5B115580%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2010?unique=b8133a8)
|
Type number: 235.351 |
23.44 € | |
![[115804] RIEGLER Foot fastening »LB« for round cylinder, for piston Ø 8-10](/web/image/product.template/200539/image_128/%5B115804%5D%20RIEGLER%20Foot%20fastening%20%C2%BBLB%C2%AB%20for%20round%20cylinder%2C%20for%20piston%20%C3%98%208-10?unique=932a53f)
|
Type number: 437.200 |
2.61 € | |
![[115819] RIEGLER Pivoting head fastening »TC« for round cyl., for piston Ø 8-10](/web/image/product.template/200553/image_128/%5B115819%5D%20RIEGLER%20Pivoting%20head%20fastening%20%C2%BBTC%C2%AB%20for%20round%20cyl.%2C%20for%20piston%20%C3%98%208-10?unique=e8e399e)
|
Type number: 437.230 |
5.33 € | |
![[115824] RIEGLER Flange fastening »FA« for round cylinder, for piston Ø 8-10](/web/image/product.template/200558/image_128/%5B115824%5D%20RIEGLER%20Flange%20fastening%20%C2%BBFA%C2%AB%20for%20round%20cylinder%2C%20for%20piston%20%C3%98%208-10?unique=720223c)
|
Type number: 437.240 |
0.87 € | |
![[115827] RIEGLER Pivoting bearing, »SDB« for round cylinder, for piston Ø 8-10](/web/image/product.template/200560/image_128/%5B115827%5D%20RIEGLER%20Pivoting%20bearing%2C%20%C2%BBSDB%C2%AB%20for%20round%20cylinder%2C%20for%20piston%20%C3%98%208-10?unique=acbc690)
|
Type number: 437.250 |
2.61 € | |
![[115832] RIEGLER Fork head »Y« for cylinder series »MI«/»MSI«, for piston Ø 8-10](/web/image/product.template/200565/image_128/%5B115832%5D%20RIEGLER%20Fork%20head%20%C2%BBY%C2%AB%20for%20cylinder%20series%20%C2%BBMI%C2%AB-%C2%BBMSI%C2%AB%2C%20for%20piston%20%C3%98%208-10?unique=ce7f404)
|
Type number: 437.310 |
3.05 € | |
![[115836] RIEGLER Joint head »UNIT« for series »MI« / »MSI«, for piston Ø 8-10](/web/image/product.template/200569/image_128/%5B115836%5D%20RIEGLER%20Joint%20head%20%C2%BBUNIT%C2%AB%20for%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20for%20piston%20%C3%98%208-10?unique=cd4d72a)
|
Type number: 437.320 |
5.24 € | |
![[116946] RIEGLER Sensor »CS1« Rundzyl.»MI«/»MSI«, Kolben-Ø10, REED, 2-Draht,M8,NO](/web/image/product.template/267801/image_128/%5B116946%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20Rundzyl.%C2%BBMI%C2%AB-%C2%BBMSI%C2%AB%2C%20Kolben-%C3%9810%2C%20REED%2C%202-Draht%2CM8%2CNO?unique=2946b33)
|
Type number: 235.301-1 |
13.40 € | |
![[118561] RIEGLER Sensor holder, piston Ø 10, for sensor type CS1, stainless steel](/web/image/product.template/275018/image_128/%5B118561%5D%20RIEGLER%20Sensor%20holder%2C%20piston%20%C3%98%2010%2C%20for%20sensor%20type%20CS1%2C%20stainless%20steel?unique=9d16d0c)
|
Type number: 235.10SH |
2.71 € | |
