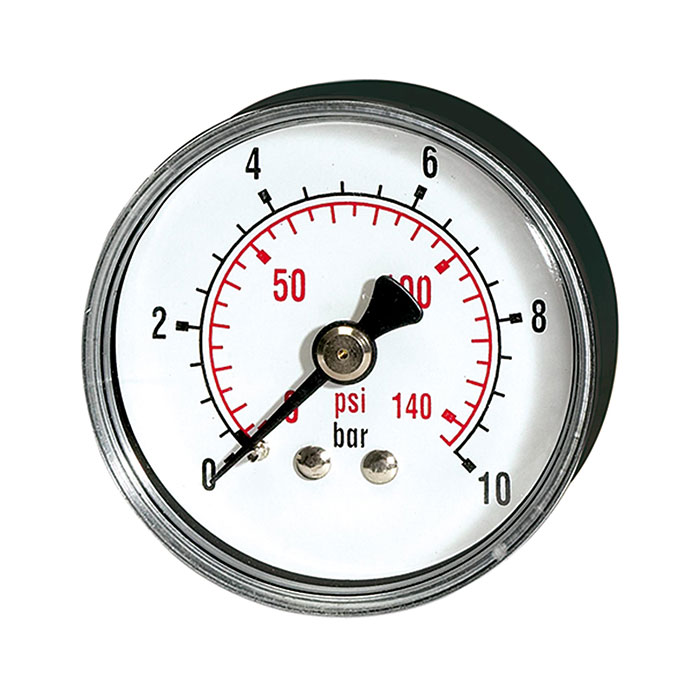

RIEGLER Standard pressure gauge »pressure line« G 1/4, 0 - 10 bar/150 psi
Type number: 217-EN
EAN: 4047322175975
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Standard mano. "pressure line", sheet steel housing, connection rear center, G 1/4, grade 1.6, measuring range 0 - 10.0 bar/150 psi, Ø 63
| Housing | Sheet steel |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Measuring element | Copper alloy |
| Pointer movement | Copper alloy |
| Viewing window | Plastic |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 10 |
| Diameter | 63 mm |
| Graduation value in the bar range | 0.2 bar |
| Execution | Bourdon tube pressure gauge |
| Connection | G 1/4 |
| Quality class | 45444 |
| Lower / Upper measuring range limit | Overpressure |
| Connection position | rear, centric |
| Class name | EASY |
| Process connection material | Copper alloy |
