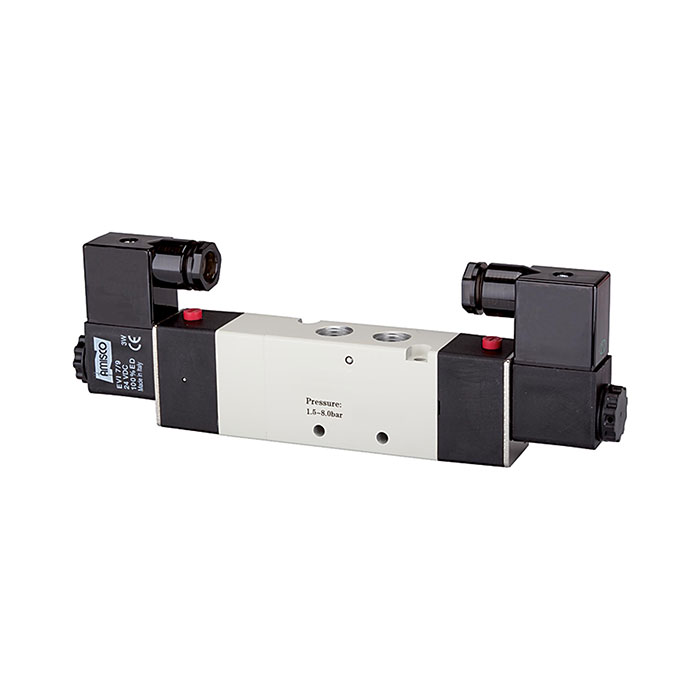

RIEGLER 5/3-way valve, electropneumatic, »4V« Centre closed, 24 V DC
Type number: 517.3005
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
116156EAN :
4047322310819Category :
Valves Electropneumatically OperatedWeight :
0.49 kg5/3-way valve, electropneumatic, »4V«, Centre closed, G 3/8, 24 V DC, Operating pressure 1.5 - 8 bar, Temp. -20 °C to 70 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Protection class | IP 65 |
| Electrical connection | Cable plug form B according to ISO 4400 |
| Operating pressure min. | 1.5 bar |
| Max. operating pressure | 8 bar |
| Working pressure min. | 1.5 bar |
| Valve body | Aluminum alloy |
| Manual override | latching/touching |
| Flow rate | 950 l/min |
| Function | 5/3 |
| Actuation | Center closed |
| Symbol | 37 |
| BG | 300 |
| Tension | 24 V DC |
| Venting connection | G 1/4 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 3/8 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
