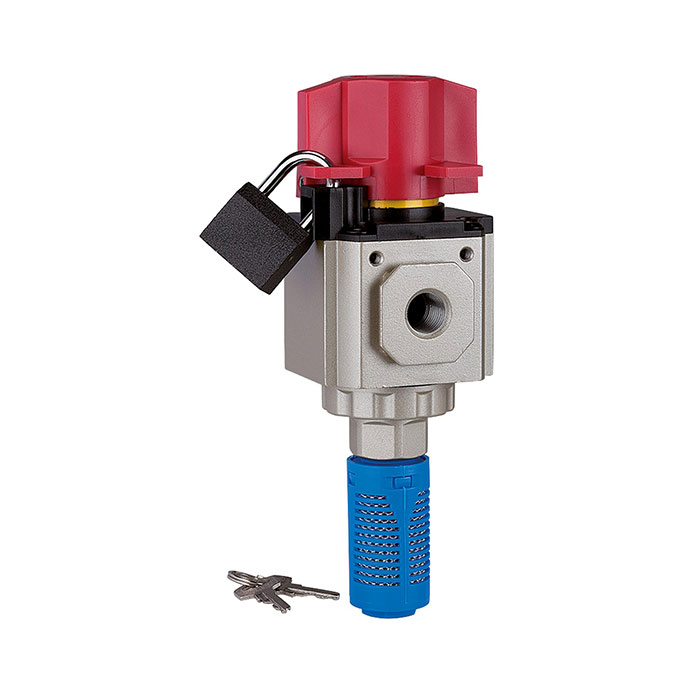

RIEGLER 3/2-way blocking valve »G«, Size 300, G 1/2
Type number: GK 13
EAN: 4047322308816
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-way shut-off valve "G" with mounting bracket, padlock and silencer, manually operated, BG 300, G 1/2, inlet pressure 0 - 9 bar
| Inlet pressure min. | 0 bar |
| Inlet pressure max. | 9 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | G |
| Medium temperature max. | 70 °C |
| Ambient temperature max. | 70 °C |
| Gag | Plastic |
| Thread | G 1/2 |
| Flow rate | 2500 l/min |
| BG | 300 |
| A | 51 mm |
| B | 112.5 mm |
| C | 66.5 mm |
| D | 46 mm |
| Vent connection | G 3/8 |
| Class name | EASY |
