RIEGLER Corner safety valve, saturated steam, G 2, Trigger pressure 2 bar

Price:

346.12 €

RIEGLER Corner safety valve, G 2, Trigger pressure 1.6 bar
RIEGLER Corner safety valve, G 2, Trigger pressure 1.6 bar
346.12 € 346.12 €
RIEGLER Corner safety valve, G 2, Trigger pressure 3.5 bar
RIEGLER Corner safety valve, G 2, Trigger pressure 3.5 bar
346.12 € 346.12 €

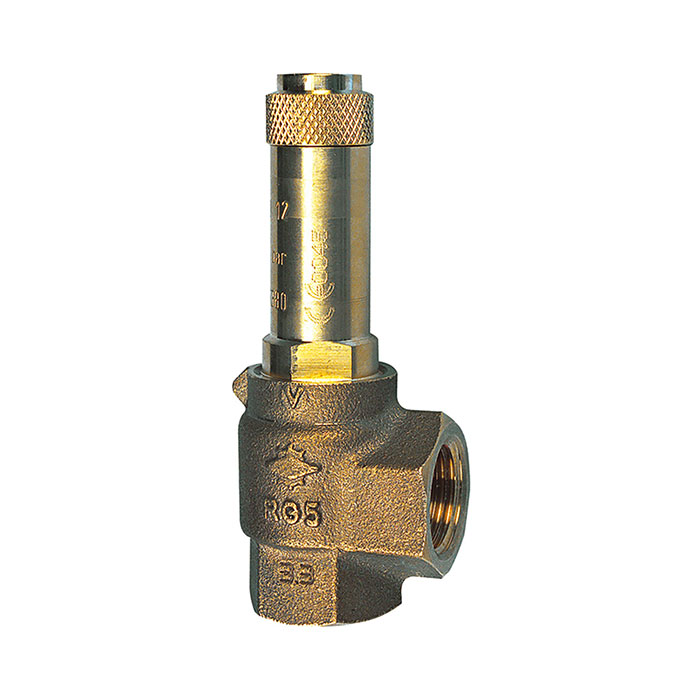

RIEGLER Corner safety valve, saturated steam, G 2, Trigger pressure 2 bar

https://www.filcom-technik.de/web/image/product.template/202360/image_1920?unique=141cf17

Type number: 222.08-2,0

EAN: 4047322352802

346.12 € 346.12 EUR 346.12 € VAT Included

447.48 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

117645

EAN :

4047322352802

Weight :

2.25 kg

Angle safety valve, for saturated steam, gunmetal, operating temp. -10 to 150 °C, G 2, SW 70, set pressure 2 bar

Housing Gunmetal
Membrane EPDM
Spring cover Brass
Interior parts Brass
Setting range 0.2 - 20 bar (depending on connection size and medium)
Operating temperature min. -10 °C
Operating temperature max. 150 °C
Spring Carbon steel
Entry and exit female thread type G according to DIN EN ISO 228-1
Operating temperature -10 °C to 150 °C (EPDM) 185 °C (PTFE)
Thread G 2
SW 70 mm
Setting range min. 0.2 bar
Response pressure min. 2 bar
H 200 mm
L1 56 mm
L2 48 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Setting range max. 20 bar
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification none
Theme shop SAFETY
Class name FLEX
