RIEGLER 2/2 We-MV, NC, MS, G 112, DN 40, PN 0.2-10, NBR, pre-welded. 110V AC
Type number: FU 7416
EAN: 4047322726092
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.

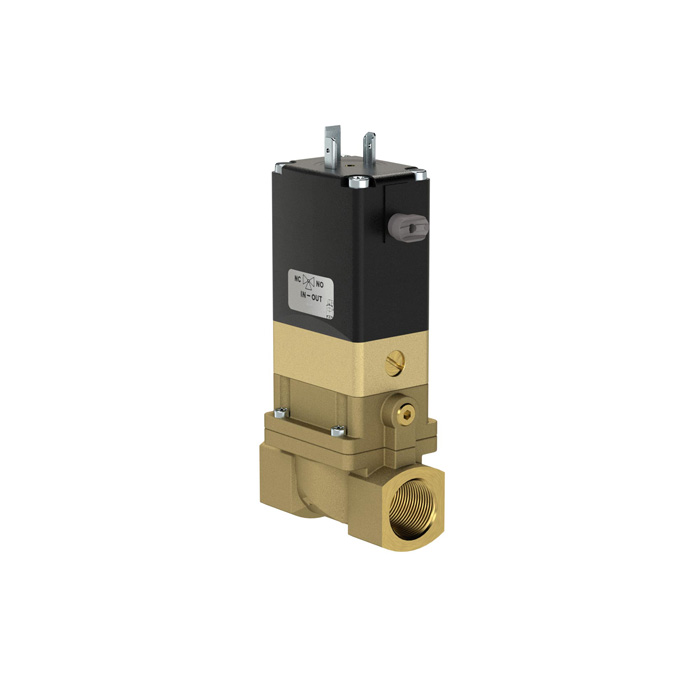

2/2-way solenoid valve, media-controlled, NC, MS, G 112, DN 40, PN 0.2-10, NBR, supply 110V AC, media temp. 0 to 80, ambient temp. 0 to 55
| Housing | Brass |
| Sealing material | NBR |
| Protection class | IP 65 (when using the cable plug) |
| Operating pressure min. | 0.2 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 55 °C |
| Thread | G 1 1/2 |
| DN | 40 |
| Function | normally closed (NC) |
| A | 126 mm |
| B | 156 mm |
| C | 126 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
| Stand Material Compliance | 44797 |
| Electrical connection | Plug lugs according to DIN EN 175301-803 |
| Interior parts | Brass and stainless steel |
| Valve seat | Brass and stainless steel |
| Tension | 110V AC |
