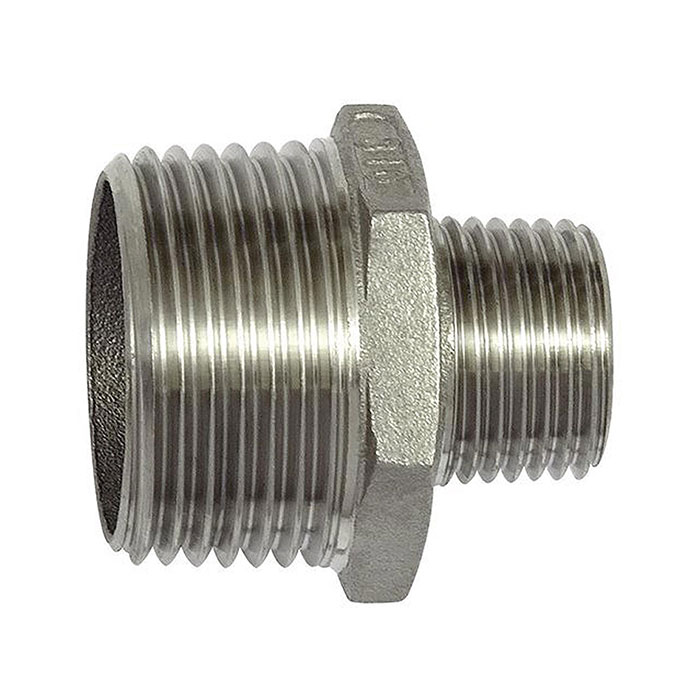

RIEGLER Double threaded nipple, reducing, Hexagonal, R 3/8, R 1/4, AF 18
Type number: 277.05-ES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Double threaded nipple, reducing, Hexagonal, R 3/8, R 1/4, AF 18, Working pressure max. 20 bar, Stainless steel 1.4408
| Working pressure max. | 20 bar |
| SW | 18 mm |
| Thread standard | ISO 7-1 |
| Cross-section | Hexagon |
| L1 | 26.5 mm |
| L2 | 11 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| External thread 1 | R 3/8 |
| External thread 2 | R 1/4 |
| L3 | 10.5 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125673] RIEGLER Double threaded nipple, red., Hexagonal, R 1 1/4, R 3/4, AF 44](/web/image/product.template/202519/image_128/%5B125673%5D%20RIEGLER%20Double%20threaded%20nipple%2C%20red.%2C%20Hexagonal%2C%20R%201%201-4%2C%20R%203-4%2C%20AF%2044?unique=7822522)
|
Type number: 277.15-ES |
6.83 € | |
![[125674] RIEGLER Double threaded nipple, red., Octagonal, R 1 1/2, R 3/4, AF 50](/web/image/product.template/202520/image_128/%5B125674%5D%20RIEGLER%20Double%20threaded%20nipple%2C%20red.%2C%20Octagonal%2C%20R%201%201-2%2C%20R%203-4%2C%20AF%2050?unique=2bec61a)
|
Type number: 277.16-ES |
8.85 € | |
![[118543] RIEGLER Double threaded nipple red., R 1, 1/2, AG, SW 34, ES 1.4408](/web/image/product.template/268084/image_128/%5B118543%5D%20RIEGLER%20Double%20threaded%20nipple%20red.%2C%20R%201%2C%201-2%2C%20AG%2C%20SW%2034%2C%20ES%201.4408?unique=06d2b52)
|
Type number: DGNR112ES4408RED |
3.90 € | |
![[118548] RIEGLER Double threaded nipple red., R 1 1/2, R 1 1/4, AG, SW 50, ES 1.4408](/web/image/product.template/267765/image_128/%5B118548%5D%20RIEGLER%20Double%20threaded%20nipple%20red.%2C%20R%201%201-2%2C%20R%201%201-4%2C%20AG%2C%20SW%2050%2C%20ES%201.4408?unique=ad207cf)
|
Typennummer: DGNR112114ES4408RED |
7.68 € | |
![[118547] RIEGLER Double threaded nipple red., R 1 1/2, R 1, AG, SW 50, ES 1.4408](/web/image/product.template/267764/image_128/%5B118547%5D%20RIEGLER%20Double%20threaded%20nipple%20red.%2C%20R%201%201-2%2C%20R%201%2C%20AG%2C%20SW%2050%2C%20ES%201.4408?unique=112bcc1)
|
Type number: DGNR1121ES4408RED |
7.68 € | |
![[118554] RIEGLER Double threaded nipple red, R 1 1/2, R 3/4, AG, SW 50, ES 1.4408](/web/image/product.template/275013/image_128/%5B118554%5D%20RIEGLER%20Double%20threaded%20nipple%20red%2C%20R%201%201-2%2C%20R%203-4%2C%20AG%2C%20SW%2050%2C%20ES%201.4408?unique=6791fbb)
|
Typennummer: DGNR11234ES4408RED |
7.68 € | |
![[118546] RIEGLER Double threaded nipple red., R 1 1/4, R 1, AG, SW 43, ES 1.4408](/web/image/product.template/267693/image_128/%5B118546%5D%20RIEGLER%20Double%20threaded%20nipple%20red.%2C%20R%201%201-4%2C%20R%201%2C%20AG%2C%20SW%2043%2C%20ES%201.4408?unique=9c02b30)
|
Type number: DGNR1141ES4408RED |
5.88 € | |
![[118545] RIEGLER Double threaded nipple red, R 1 1/4, R 3/4, AG, SW 43, ES 1.4408](/web/image/product.template/275009/image_128/%5B118545%5D%20RIEGLER%20Double%20threaded%20nipple%20red%2C%20R%201%201-4%2C%20R%203-4%2C%20AG%2C%20SW%2043%2C%20ES%201.4408?unique=43cad70)
|
Typennummer: DGNR11434ES4408RED |
5.88 € | |
![[118538] RIEGLER Double threaded nipple red., R 1/2, R 1/4, AG, SW 22, ES 1.4408](/web/image/product.template/267935/image_128/%5B118538%5D%20RIEGLER%20Double%20threaded%20nipple%20red.%2C%20R%201-2%2C%20R%201-4%2C%20AG%2C%20SW%2022%2C%20ES%201.4408?unique=4e54a67)
|
Type number: DGNR1214ES4408RED |
1.81 € | |
![[118540] RIEGLER Double threaded nipple red., R 1/2, R 3/8, AG, SW 22, ES 1.4408](/web/image/product.template/267936/image_128/%5B118540%5D%20RIEGLER%20Double%20threaded%20nipple%20red.%2C%20R%201-2%2C%20R%203-8%2C%20AG%2C%20SW%2022%2C%20ES%201.4408?unique=67b463a)
|
Type number: DGNR1238ES4408RED |
1.81 € | |
![[118544] RIEGLER Double threaded nipple red., R 1, 3/4, AG, SW 34, ES 1.4408](/web/image/product.template/268085/image_128/%5B118544%5D%20RIEGLER%20Double%20threaded%20nipple%20red.%2C%20R%201%2C%203-4%2C%20AG%2C%20SW%2034%2C%20ES%201.4408?unique=410355a)
|
Type number: DGNR134ES4408RED |
3.90 € | |
![[118555] RIEGLER Double threaded nipple red., R 1, 3/8, AG, SW 34, ES 1.4408](/web/image/product.template/268086/image_128/%5B118555%5D%20RIEGLER%20Double%20threaded%20nipple%20red.%2C%20R%201%2C%203-8%2C%20AG%2C%20SW%2034%2C%20ES%201.4408?unique=80f3cd9)
|
Type number: DGNR138ES4408RED |
3.90 € | |
![[118528] RIEGLER Double threaded nipple red., R 1/4, R 1/8, AG, SW 15, ES 1.4408](/web/image/product.template/267856/image_128/%5B118528%5D%20RIEGLER%20Double%20threaded%20nipple%20red.%2C%20R%201-4%2C%20R%201-8%2C%20AG%2C%20SW%2015%2C%20ES%201.4408?unique=d669b4e)
|
Type number: DGNR1418ES4408RED |
1.39 € | |
![[118551] RIEGLER Double threaded nipple red, R 2 1/2, R 2, AG, SW 80, ES 1.4408](/web/image/product.template/275010/image_128/%5B118551%5D%20RIEGLER%20Double%20threaded%20nipple%20red%2C%20R%202%201-2%2C%20R%202%2C%20AG%2C%20SW%2080%2C%20ES%201.4408?unique=4538259)
|
Type number: DGNR2122ES4408RED |
21.07 € | |
![[118550] RIEGLER Double threaded nipple red., R 2, R 1 1/2, AG, SW 61, ES 1.4408](/web/image/product.template/267824/image_128/%5B118550%5D%20RIEGLER%20Double%20threaded%20nipple%20red.%2C%20R%202%2C%20R%201%201-2%2C%20AG%2C%20SW%2061%2C%20ES%201.4408?unique=832e000)
|
Type number: DGNR2112ES4408RED |
10.82 € | |
![[118549] RIEGLER Double threaded nipple red., R 2, R 1 1/4, AG, SW 61, ES 1.4408](/web/image/product.template/267823/image_128/%5B118549%5D%20RIEGLER%20Double%20threaded%20nipple%20red.%2C%20R%202%2C%20R%201%201-4%2C%20AG%2C%20SW%2061%2C%20ES%201.4408?unique=8efffc2)
|
Type number: DGNR2114ES4408RED |
10.82 € | |

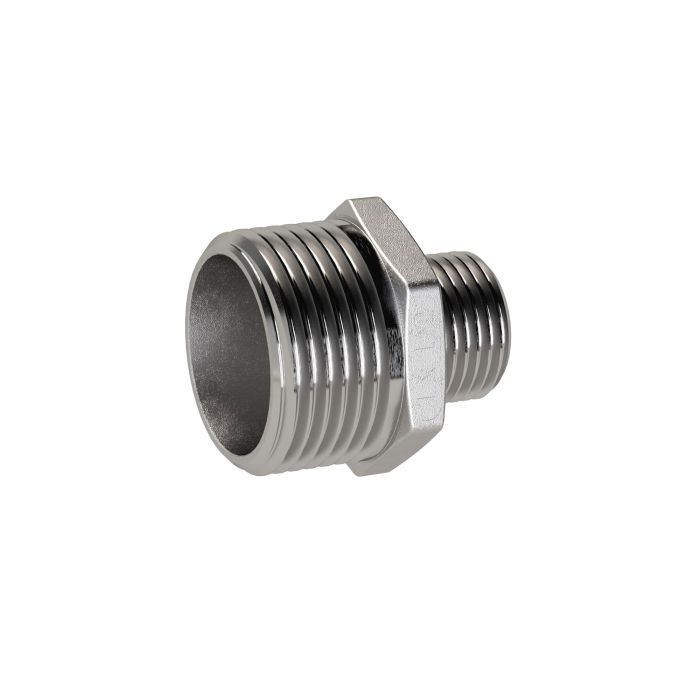

![[118556] RIEGLER Double threaded nipple red., R 2, R 1, AG, SW 61, ES 1.4408](/web/image/product.template/267825/image_128/%5B118556%5D%20RIEGLER%20Double%20threaded%20nipple%20red.%2C%20R%202%2C%20R%201%2C%20AG%2C%20SW%2061%2C%20ES%201.4408?unique=cb0d5b1)
|
