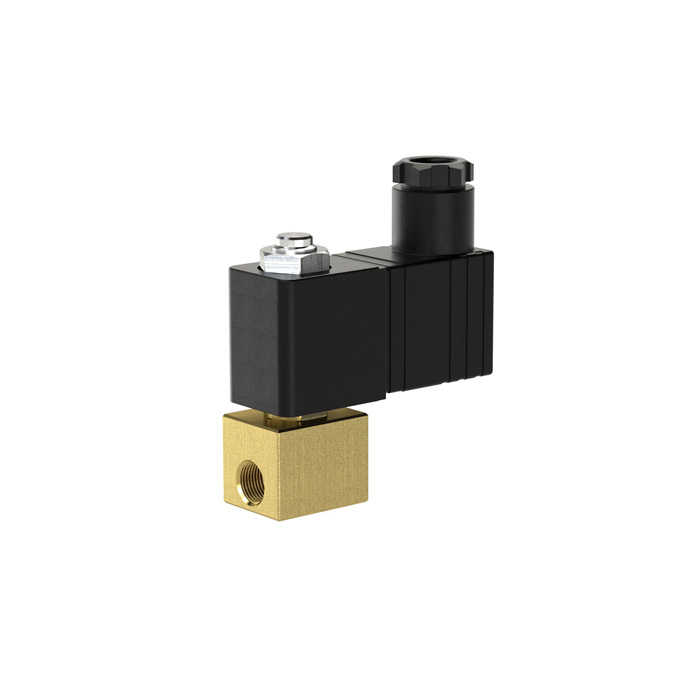

RIEGLER 2/2 MV, NC, MS, G18, DN 2.5, PN 0-8, NBR, direct 24V AC
Type number: 5624B404
EAN: 4047322729949
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
2/2-way solenoid valve, NC, MS, G 1/8, DN2.5, PN 0-8, NBR, direct 24V AC, med. temp. -20 to 85, ambient temp. -20 to 55
| Housing | Brass |
| Sealing material | NBR |
| Protection class | IP 65 (when using the cable plug) |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 8 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 85 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 55 °C |
| Thread | G 1/8 |
| DN | 45414 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| Function | normally closed (NC) |
| A | 25 mm |
| B | 57 mm |
| C | 20 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Stand Material Compliance | 44811 |
| Electrical connection | Cable plug, industrial standard, type B - EN 175301-803-B |
| Interior parts | Brass and stainless steel |
| Valve seat | Brass and stainless steel |
| Tension | 24V AC |
