RIEGLER 2/2 MV, NO, MS, G12, DN13, PN 0-12, NBR, forced, 24V DC
Type number: MVB.12.MS.24D.N.RZ.13
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
2/2-way solenoid valve, NO, brass, G 1/2, DN13, PN 0-12, NBR, combined operated, 24V DC, med.temp -20 to 85, ambi.temp -10 to 50
| Housing | Brass |
| Sealing material | NBR |
| Protection class | IP 65 (when using the cable plug) |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 12 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 85 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Thread | G 1/2 |
| DN | 13 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| Function | normally open (NO) |
| A | 67 mm |
| B | 100 mm |
| C | 48 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Stand Material Compliance | 44811 |
| Electrical connection | Cable plug, industrial standard type A - EN 175301-803-A |
| Interior parts | Brass and stainless steel |
| Valve seat | Brass and stainless steel |
| Tension | 24V DC |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

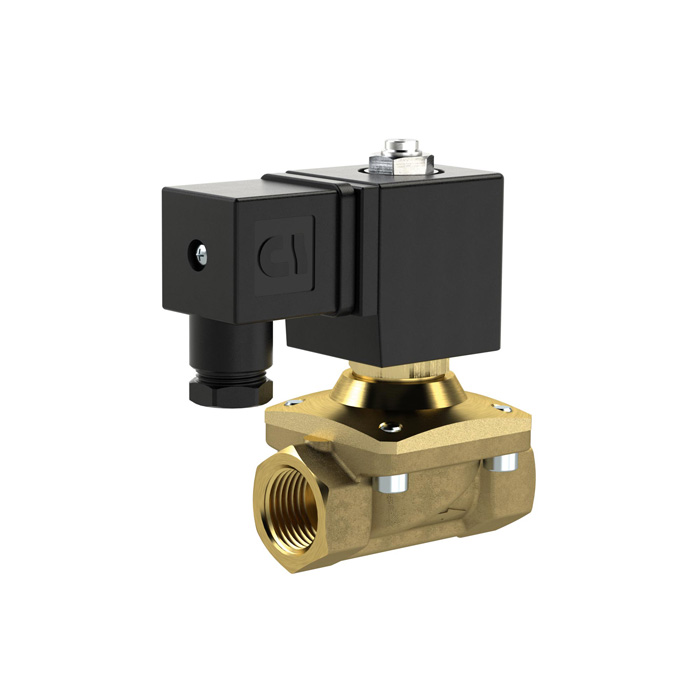

![[129475] RIEGLER 2/2 MV, NO, MS, G12, DN13, PN 0-12, FPM, forced, 24V DC](/web/image/product.template/273696/image_128/%5B129475%5D%20RIEGLER%202-2%20MV%2C%20NO%2C%20MS%2C%20G12%2C%20DN13%2C%20PN%200-12%2C%20FPM%2C%20forced%2C%2024V%20DC?unique=78f5075)
|
