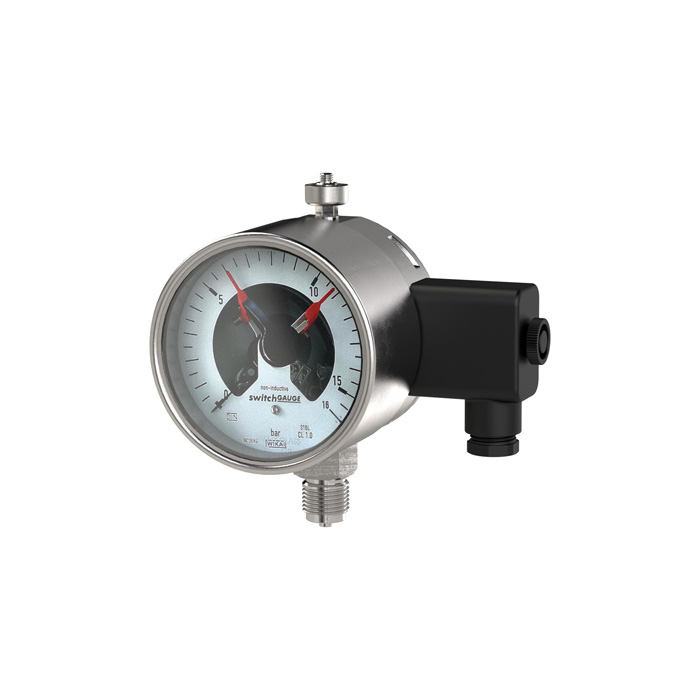

RIEGLER Contact pressure gauge, G 1/2 radial bottom, measuring range 0 - 2.5 bar, Ø 100
Type number: 5623F20L103
EAN: 4047322737593
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Contact pressure gauge with magnetic snap-action contact, radial bottom connection, G 1/2, type PGS23, grade 1.0, measuring range 0 - 2.5 bar, Ø 100
| Housing | Stainless steel 1.4301 |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Measuring element | CrNi steel |
| Pointer movement | CrNi steel |
| Viewing window | Multi-layer safety glass |
| Rated operating voltage Ueff max. | 250 V |
| Switching capacity max. | 30 W / 50 VA |
| Measuring range min. bar | 0 |
| Diameter | 100 mm |
| Graduation value in the bar range | 0.05 bar |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Quality class | 1 |
| Lower / Upper measuring range limit | Overpressure |
| Ring | CrNi steel |
| Connection position | radial bottom |
| Class name | STAINLESS STEEL |
| Process connection material | CrNi steel |
| Stand Material Compliance | 45078 |
| Type | PGS23 |
| Measuring range max. bar | 45414 |
