RIEGLER Mini ball valve n. lockable, venting, G 1/8 IG
Type number: 377.01-R
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Mini ball valve, not lockable, venting hole 2.5, operating temperature -20 °C to 80 °C, G 1/8 IT, DN 6, PN -0.99-20 bar
| Area of application | Compressed air, water, oil |
| Max. operating pressure | 20 bar |
| Operating pressure min. | -0.99 bar |
| Operating temperature max. | 80 °C |
| Operating temperature min. | -20 °C |
| DN | 6 |
| Rotary handle | PA 66 glass fiber reinforced |
| Vent hole | 2.5 |
| Housing | Nickel-plated brass |
| Thread | G 1/8 FEMALE THREAD |
| Thread material | Nickel-plated brass |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| H | 15.5 mm |
| Class name | PLUS |
| Ball | Nickel-plated brass |
| Ball seal | PTFE |
| L | 35 mm |
| L1 | 19 mm |
| Spindle seal | NBR |
| SW | 14 - 15 mm |
| Theme shop | SAFETY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

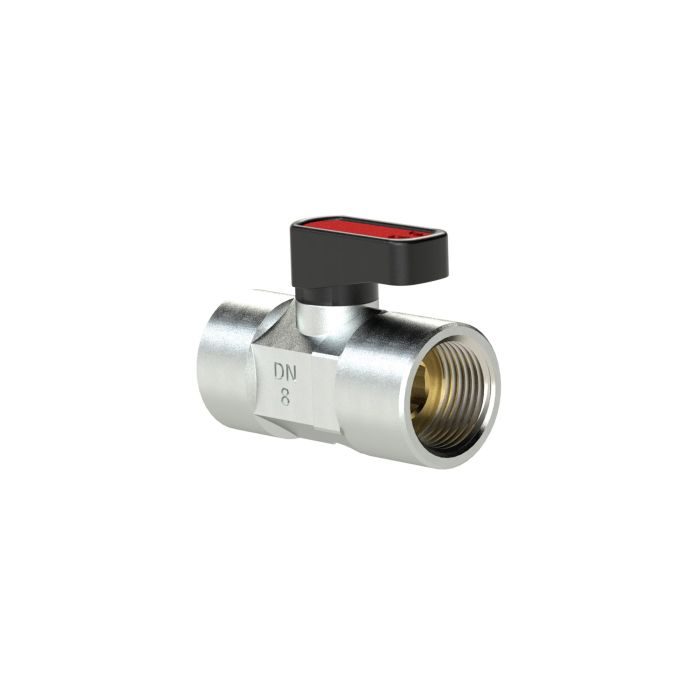

![[129823] RIEGLER Mini ball valve n. lockable, venting, G 1/4 IG](/web/image/product.template/268116/image_128/%5B129823%5D%20RIEGLER%20Mini%20ball%20valve%20n.%20lockable%2C%20venting%2C%20G%201-4%20IG?unique=0c6f327)
|
Type number: 377.02-R |
7.20 € | |
![[129824] RIEGLER Mini ball valve n. lockable, venting, G 3/8 IG](/web/image/product.template/267710/image_128/%5B129824%5D%20RIEGLER%20Mini%20ball%20valve%20n.%20lockable%2C%20venting%2C%20G%203-8%20IG?unique=0fa4530)
|
Type number: 377.03-R |
8.02 € | |
