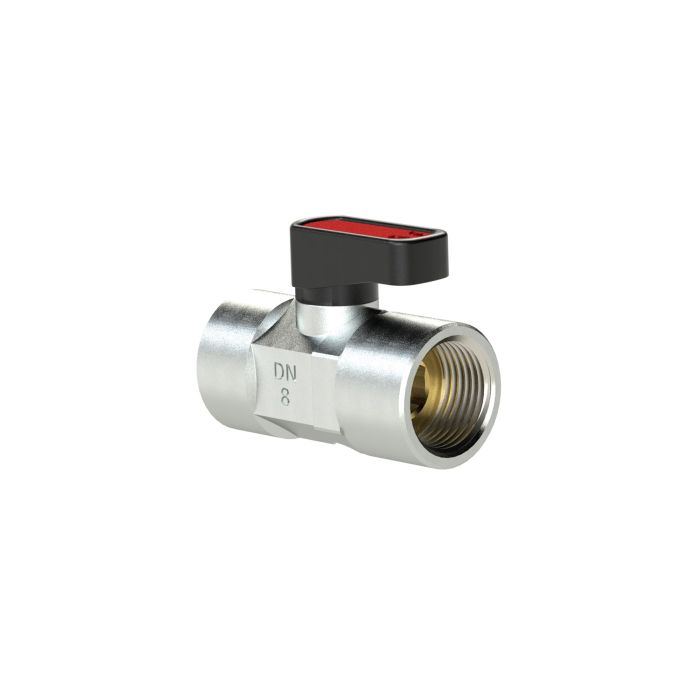

RIEGLER Mini ball valve n. lockable, venting, G 1/4 IG
Type number: 377.02-R
EAN: 4047322739542
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Mini ball valve, non-lockable, vent bore. 2.5, operating temp. -20°C to 80°C, G 1/4 female thread, DN 6, PN -0.99-20 bar
| Area of application | Compressed air, water, oil |
| Max. operating pressure | 20 bar |
| Operating pressure min. | -0.99 bar |
| Operating temperature max. | 80 °C |
| Operating temperature min. | -20 °C |
| DN | 6 |
| Rotary handle | PA 66 glass fiber reinforced |
| Vent hole | 2.5 |
| Housing | Nickel-plated brass |
| Thread | G 1/4 FEMALE THREAD |
| Thread material | Nickel-plated brass |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| H | 17.5 mm |
| Class name | PLUS |
| Ball | Nickel-plated brass |
| Ball seal | PTFE |
| L | 37 mm |
| L1 | 19 mm |
| Spindle seal | NBR |
| SW | 14 - 15 mm |
| Theme shop | SAFETY |
