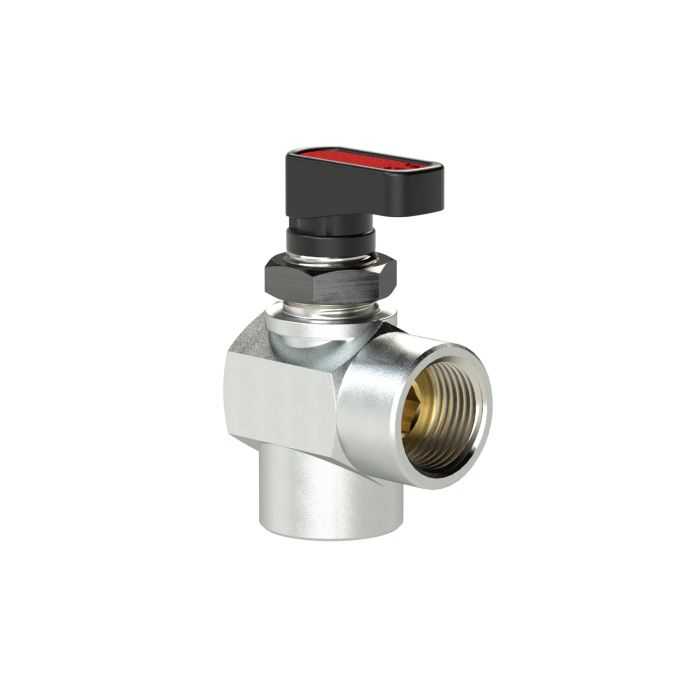

RIEGLER Angled mini ball valve, panel mounting, MS chrome-plated, G 3/8 IG

https://www.filcom-technik.de/web/image/product.template/267830/image_1920?unique=b32dc34

Type number: 380.03-R

14.49 € 14.49 EUR 14.49 € VAT Included

20.30 € VAT Included

Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

129827

EAN :

4047322739580

Category :

2-Way Ball Valves

Weight :

0.11 kg

Angled mini ball valve, Control panel integration, Brass chrome plated, Operating temp. -20°C to 80°C, G 3/8 IT, PN -0.99 - 20 bar

Area of application Compressed air, water, oil
Max. operating pressure 20 bar
Operating pressure min. -0.99 bar
Operating temperature max. 80 °C
Operating temperature min. -20 °C
DN 7
Rotary handle PA 66 glass fiber reinforced
G 19 mm
Housing Chrome-plated brass
Thread G 3/8 IG
Thread material Nickel-plated brass
Thread standard G-thread according to DIN EN ISO 228-1
H1 35 mm
H2 17.5 mm
Class name PLUS
Ball Nickel-plated brass
Ball seal PTFE
L 31 mm
Spindle seal NBR
SW 1 17 mm
SW 2 21 mm
