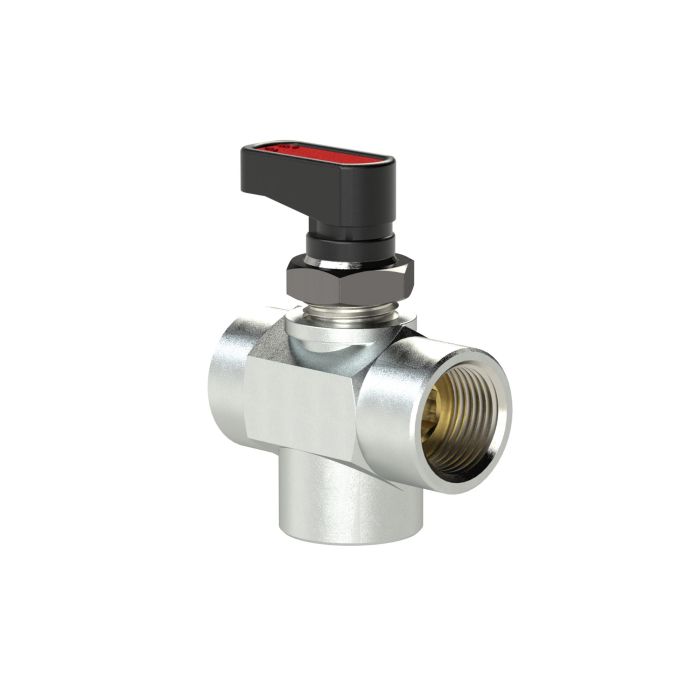

RIEGLER 3-way mini ball valve, L-bore, MS chrome-plated, G 1/4 IG, DN 5
Type number: 381.02-R
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3-way mini ball valve, L-bore, Brass chrome plated, Operating temperature -20 °C to 80 °C, G 1/4 IT, DN 5, PN -0.99 - 20 bar
| Area of application | Compressed air, water, oil |
| Max. operating pressure | 20 bar |
| Operating pressure min. | -0.99 bar |
| Operating temperature max. | 80 °C |
| Operating temperature min. | -20 °C |
| DN | 5 |
| Rotary handle | PA 66 glass fiber reinforced |
| G | 19 mm |
| Housing | Chrome-plated brass |
| Thread | G 1/4 FEMALE THREAD |
| Thread material | Nickel-plated brass |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| H1 | 33.5 mm |
| H2 | 17.5 mm |
| Class name | PLUS |
| Ball | Nickel-plated brass |
| Ball seal | PTFE |
| L | 37 mm |
| Spindle seal | NBR |
| SW 1 | 17 mm |
| SW 2 | 17 mm |
