RIEGLER Ball valve EN 331, DVGW, Butterfly handle, IT/ET, Rp/R 1
Type number: 350.1135
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve EN 331, DVGW, nickel-plated brass, Butterfly handle, IT/ET, Rp/R 1, DN 25, Operat. temp. -15°C to 60°C, PN max. 5 bar
| Housing | Nickel-plated brass |
| Ball | Chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | PTFE / EPDM / HNBR |
| Wing handle | Aluminum |
| Operating pressure | max. 5 bar (pressure class MOP 5 according to DIN EN 331) |
| Operating temperature | -15 °C to 60 °C Gas |
| DVGW approval | DIN EN 331:2013-05 |
| Thread | Rp/R 1 |
| DN | 25 |
| Thread standard | Thread according to ISO 7-1 |
| A | 56 mm |
| B | 46 mm |
| L | 89 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[133194] RIEGLER Ball valve EN 331, DVGW, Butterfly handle, IT/ET, Rp/R 1/2](/web/image/product.template/202844/image_128/%5B133194%5D%20RIEGLER%20Ball%20valve%20EN%20331%2C%20DVGW%2C%20Butterfly%20handle%2C%20IT-ET%2C%20Rp-R%201-2?unique=7947d14)
|
Type number: 350.1133 |
13.07 € | |
![[133192] RIEGLER Ball valve EN 331, DVGW, Butterfly handle, IT/ET, Rp/R 1/4](/web/image/product.template/202842/image_128/%5B133192%5D%20RIEGLER%20Ball%20valve%20EN%20331%2C%20DVGW%2C%20Butterfly%20handle%2C%20IT-ET%2C%20Rp-R%201-4?unique=476d74b)
|
Type number: 350.1131 |
10.01 € | |

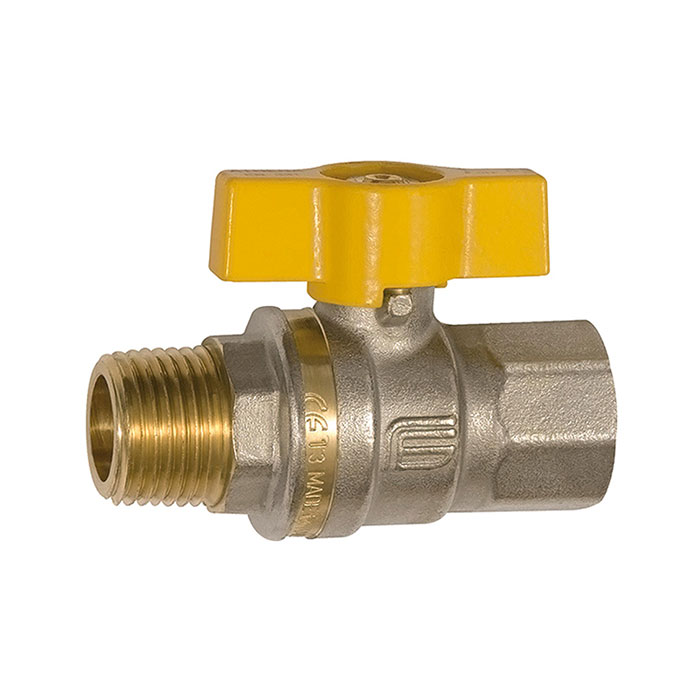

![[133195] RIEGLER Ball valve EN 331, DVGW, Butterfly handle, IT/ET, Rp/R 3/4](/web/image/product.template/202845/image_128/%5B133195%5D%20RIEGLER%20Ball%20valve%20EN%20331%2C%20DVGW%2C%20Butterfly%20handle%2C%20IT-ET%2C%20Rp-R%203-4?unique=6d0a8df)
|
