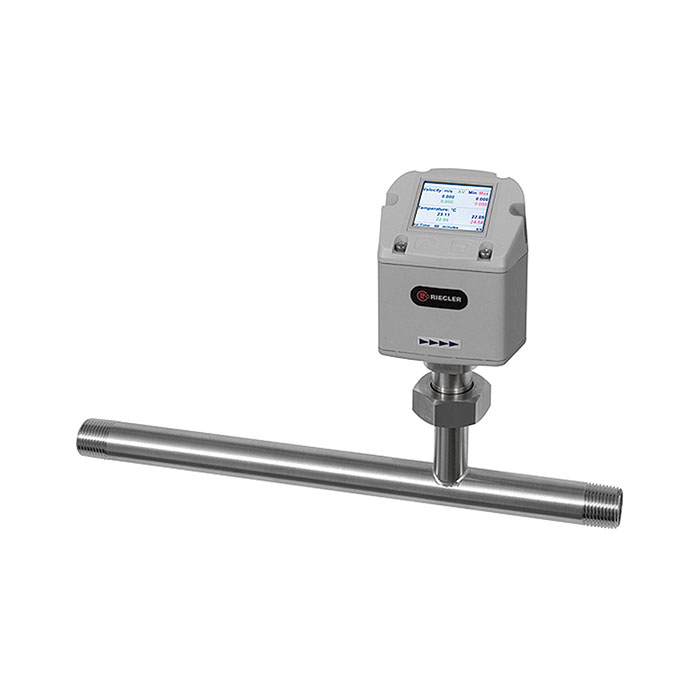

RIEGLER Flowmeter, DN 50, R 2, 2.0 - 1195 m³/h
Type number: DFMM50-2
EAN: 4047322501170
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Flow meter, incl. measuring section with threaded connection R 2, DN 50, measuring range 2.0 - 1195 m³/h, PN max. 16 bar
| Temperature range min. | -30 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air, neutral gases |
| Measuring system | calorimetric measurement |
| Max. operating pressure | 16 bar |
| Output of the flow rate values | analog 4 - 20 mA, pulse output (galvanically isolated) |
| Operating voltage | 24 V DC |
| Display | Backlight |
| Thread | R 2 |
| DN | 50 |
| Tube inside Ø | 53.1 mm |
| L | 475 mm |
| H1 | 165.7 mm |
| Measuring range min. | 2.0 m³/h |
| Class name | MAX |
