RIEGLER Stainless steel casting press. regulator, G 1 1/2, 1.7 - 17.5 bar
Type number: 580RC4-112-17
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Stainless steel casting pressure regulator, 1.4401, secondary venting (reversible), Size 4, G 1 1/2, Control range 1.7 - 17.5 bar
| Inlet pressure max. | 30 bar |
| Housing | Cast stainless steel 1.4401 (AISI 316) |
| Sealing material | NBR |
| Membrane | NBR/PTFE |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> ‰¤ 1 bar |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 1 1/2 |
| Flow rate | 11270 l/min |
| Control range min. | 1.7 bar |
| Control range max. | 17.5 bar |
| BG | 4 |
| A | 120 mm |
| B | 224 mm |
| C | 88 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

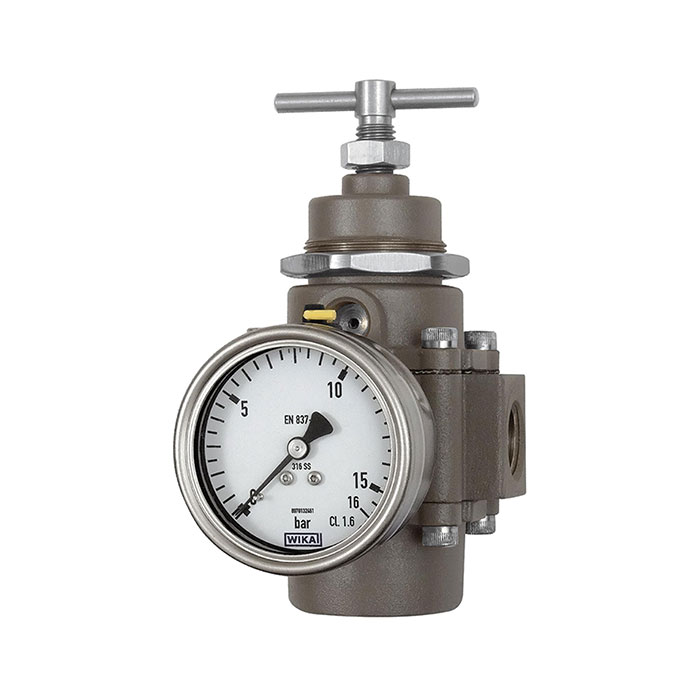

![[137324] RIEGLER Stainless steel casting pressure regulator, G 1/4, 1.7 - 17.5 bar](/web/image/product.template/207809/image_128/%5B137324%5D%20RIEGLER%20Stainless%20steel%20casting%20pressure%20regulator%2C%20G%201-4%2C%201.7%20-%2017.5%20bar?unique=fa18817)
|
