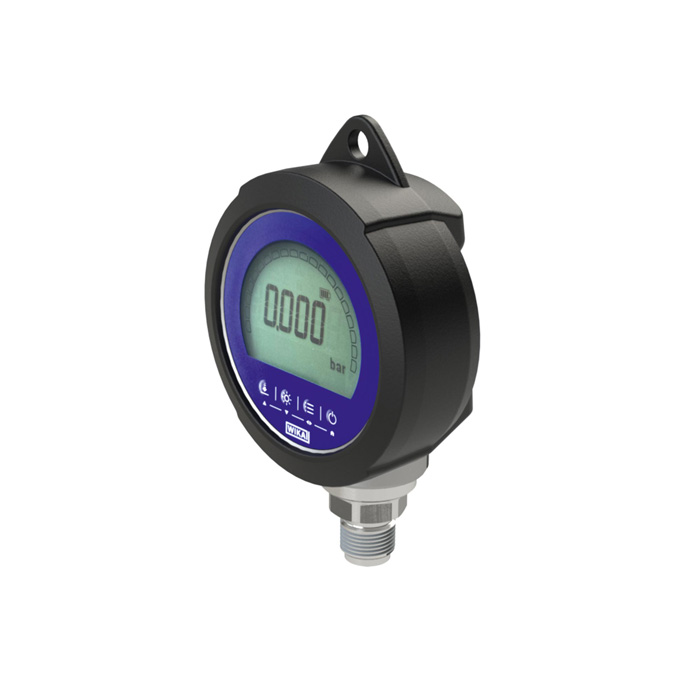

RIEGLER Digital pressure gauge, CPG1500, G 1/2, 0-1000 bar, integrated data logger
Type number: EHS3
EAN: 4047322754033
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Digital pressure gauge, type CPG1500, G1/2, 0-1000 bar, 0.1% FS, IP65, nickel-plated die-cast aluminum housing, incl. housing protection cap & data logger
| Housing | Die-cast aluminum, nickel-plated |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 50 °C |
| Wetted parts | CrNi steel 316L |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 50 °C |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 1000 |
| Connection position | Vertical installation position, process connection at the bottom |
| Class name | MAX |
| Process connection material | CrNi steel 316L |
| Housing protection cap | enclosed |
| Memory | Integrated data logger |
| Data transmission | Bluetooth® |
| Backlight | adjustable via button |
| Pressure units | adjustable via menu |
| Battery life | approx. 2,000 - 2,500 h |
| Rotatability of housing | 330 ° |
| Calibration | 3.1 acceptance test certificate in accordance with EN 10204 (factory calibration) |
| Protection class | IP65 |
| Display | 5 1/2-digit 7-segment display |
| Ambient temperature min. | 15 °C |
| Ambient temperature max. | 25 °C |
| Type | CPG1500 |
| Accuracy | 0.1% FS |
| Process connection | G 1/2 |
| Power supply | 3x 1.5 V AA alkaline batteries |
