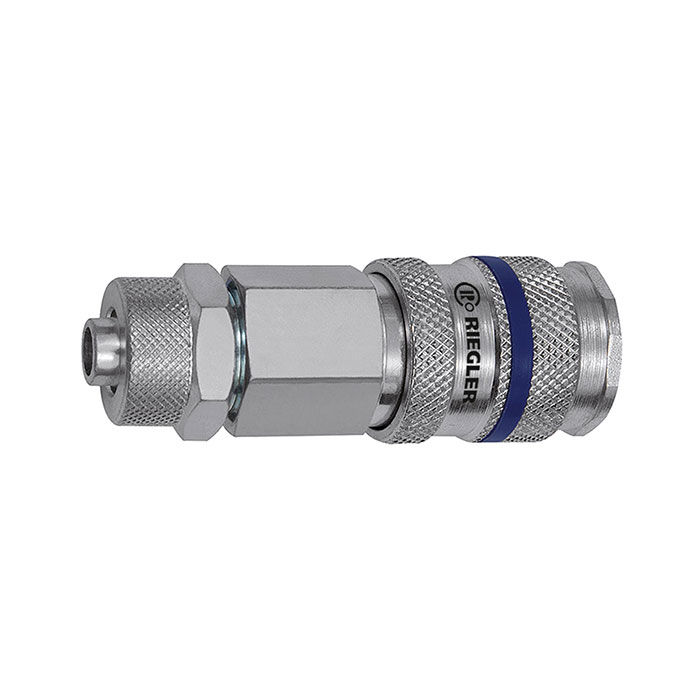

RIEGLER Quick-connect coupling I.D. 7.8, Steel, Hose connection 10x8
Type number: 244.91-1-E
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
141524EAN :
4047322568166Weight :
0.10 kgQuick-connect coupling I.D. 7.8, galvanized steel, hose connection 10x8, operating pressure 0 - 35 bar, temp. -20 °C to 100 °C
| Housing | Galvanized steel |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 2000 l/min (air) |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Sleeve | Galvanized steel |
| Threaded piece | Galvanized steel |
| Valve | Zinc die casting (Zamak) |
| Operating pressure | 0 - 35 bar |
| SW | 19 mm |
| NW | 7.8 |
| Length | 64 mm |
| Connection | Trouser connection 10x8 |
| Class name | PLUS |
