RIEGLER Swing safety coupling I.D. 5.5, ARO 210, Steel, NPT 3/8 IT
Type number: 420.02-SCH-NPT
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Swing safety coupling I.D. 5.5, ARO 210, Steel, NPT 3/8 IT, Operating pressure max. 25 bar, Temp. -20 °C to 100 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, gases |
| Housing | Steel, QPQ treated |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 820 l/min (air) |
| Sleeve | Zinc die-cast, nickel-plated, red rubber-coated |
| Threaded piece | Galvanized steel |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 22 mm |
| NW | 5.5 |
| Length | 59 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | NPT 3/8 IG |
| RoHS material information | RoHS compliant |
| Exception | 6a |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | ‰¥ 0.3% w/w and < 1.0% w/w |
| Connector profile | according to ARO 210 |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141597] RIEGLER Swing safety coupling I.D. 5.5, ARO 210, Steel, G 1/2 IT](/web/image/product.template/208212/image_128/%5B141597%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%205.5%2C%20ARO%20210%2C%20Steel%2C%20G%201-2%20IT?unique=a66a7fe)
|
Type number: 420.03-SCH |
24.97 € | |

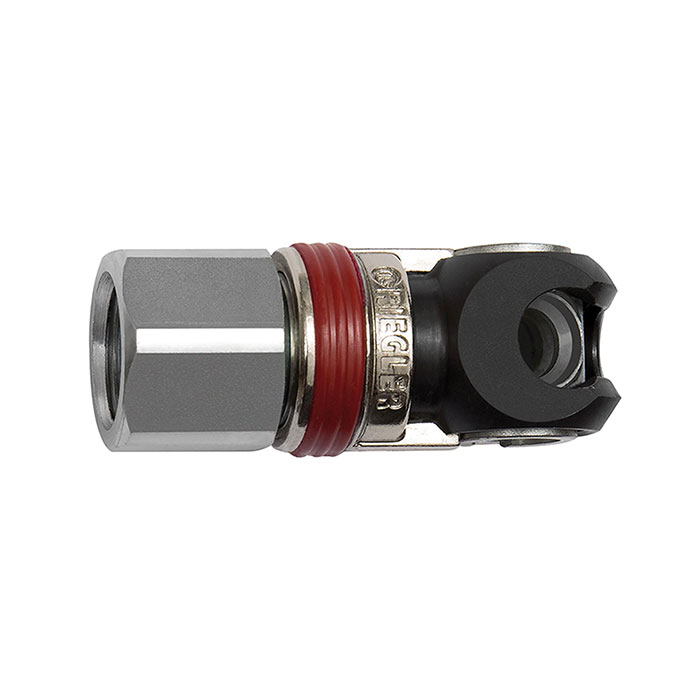

![[141595] RIEGLER Swing safety coupling I.D. 5.5, ARO 210, Steel, G 1/4 IT](/web/image/product.template/208210/image_128/%5B141595%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%205.5%2C%20ARO%20210%2C%20Steel%2C%20G%201-4%20IT?unique=e49825f)
|
Type number: 420.01-SCH |
24.97 € | |
![[141596] RIEGLER Swing safety coupling I.D. 5.5, ARO 210, Steel, G 3/8 IT](/web/image/product.template/208211/image_128/%5B141596%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%205.5%2C%20ARO%20210%2C%20Steel%2C%20G%203-8%20IT?unique=a86b214)
|
Type number: 420.02-SCH |
24.97 € | |
![[141600] RIEGLER Swing safety coupling I.D. 5.5, ARO 210, Steel, NPT 1/2 IT](/web/image/product.template/208215/image_128/%5B141600%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%205.5%2C%20ARO%20210%2C%20Steel%2C%20NPT%201-2%20IT?unique=107593d)
|
Type number: 420.03-SCH-NPT |
27.44 € | |
![[141598] RIEGLER Swing safety coupling I.D. 5.5, ARO 210, Steel, NPT 1/4 IT](/web/image/product.template/208213/image_128/%5B141598%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%205.5%2C%20ARO%20210%2C%20Steel%2C%20NPT%201-4%20IT?unique=7c767c0)
|
Type number: 420.01-SCH-NPT |
27.44 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[141612] RIEGLER Nipple for swing safety couplings I.D. 5.5, ARO 210, G 1/8 ET](/web/image/product.template/208227/image_128/%5B141612%5D%20RIEGLER%20Nipple%20for%20swing%20safety%20couplings%20I.D.%205.5%2C%20ARO%20210%2C%20G%201-8%20ET?unique=cdc3f37)
|
Type number: 420.60 |
4.43 € | |

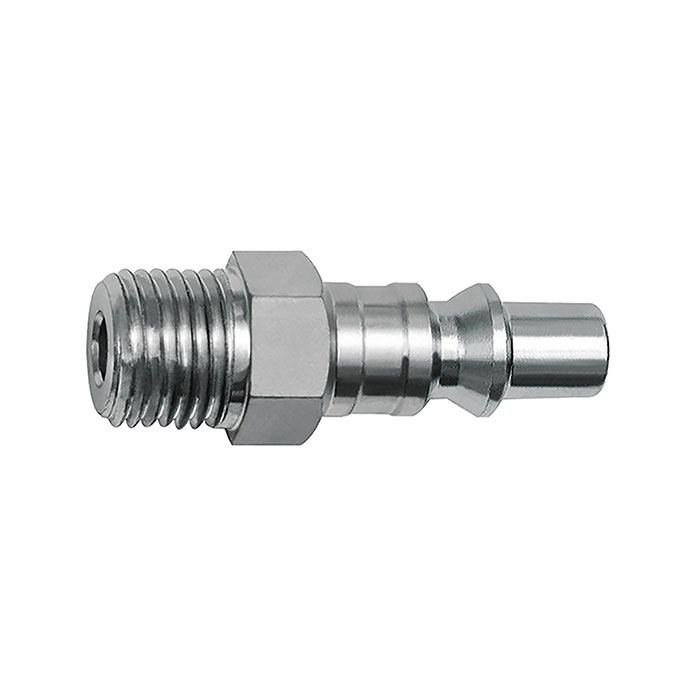

![[141613] RIEGLER Nipple for swing safety couplings I.D. 5.5, ARO 210, G 1/4 ET](/web/image/product.template/208228/image_128/%5B141613%5D%20RIEGLER%20Nipple%20for%20swing%20safety%20couplings%20I.D.%205.5%2C%20ARO%20210%2C%20G%201-4%20ET?unique=f7ee027)
|
Type number: 420.61 |
4.52 € | |

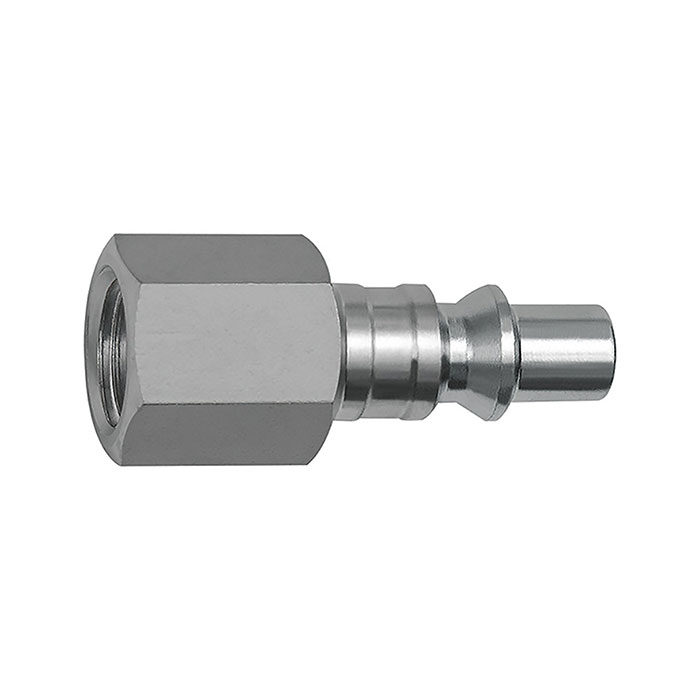

![[141616] RIEGLER Nipple for swing safety couplings I.D. 5.5, ARO 210, G 1/4 IT](/web/image/product.template/208231/image_128/%5B141616%5D%20RIEGLER%20Nipple%20for%20swing%20safety%20couplings%20I.D.%205.5%2C%20ARO%20210%2C%20G%201-4%20IT?unique=094c065)
|
Type number: 420.51 |
4.52 € | |
![[141619] RIEGLER Plug-in connector for couplings I.D. 5.5, ARO 210, Sleeve I.D. 6](/web/image/product.template/208234/image_128/%5B141619%5D%20RIEGLER%20Plug-in%20connector%20for%20couplings%20I.D.%205.5%2C%20ARO%20210%2C%20Sleeve%20I.D.%206?unique=965dc13)
|
Type number: 420.71 |
4.52 € | |
![[141620] RIEGLER Plug-in connector for couplings I.D. 5.5, ARO 210, Sleeve I.D. 8](/web/image/product.template/208235/image_128/%5B141620%5D%20RIEGLER%20Plug-in%20connector%20for%20couplings%20I.D.%205.5%2C%20ARO%20210%2C%20Sleeve%20I.D.%208?unique=519c8bd)
|
Type number: 420.72 |
4.52 € | |

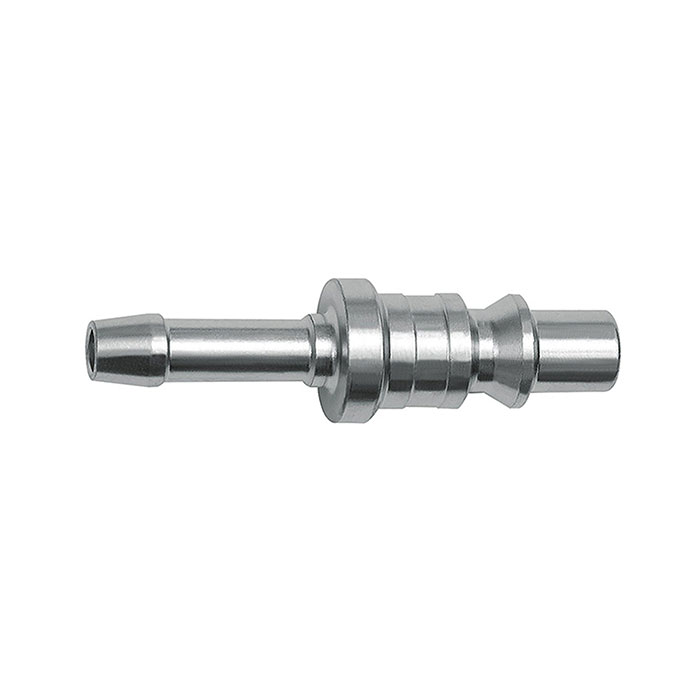

![[141621] RIEGLER Plug-in connector for couplings I.D. 5.5, ARO 210, Sleeve I.D. 10](/web/image/product.template/208236/image_128/%5B141621%5D%20RIEGLER%20Plug-in%20connector%20for%20couplings%20I.D.%205.5%2C%20ARO%20210%2C%20Sleeve%20I.D.%2010?unique=edef238)
|
Type number: 420.74 |
4.52 € | |

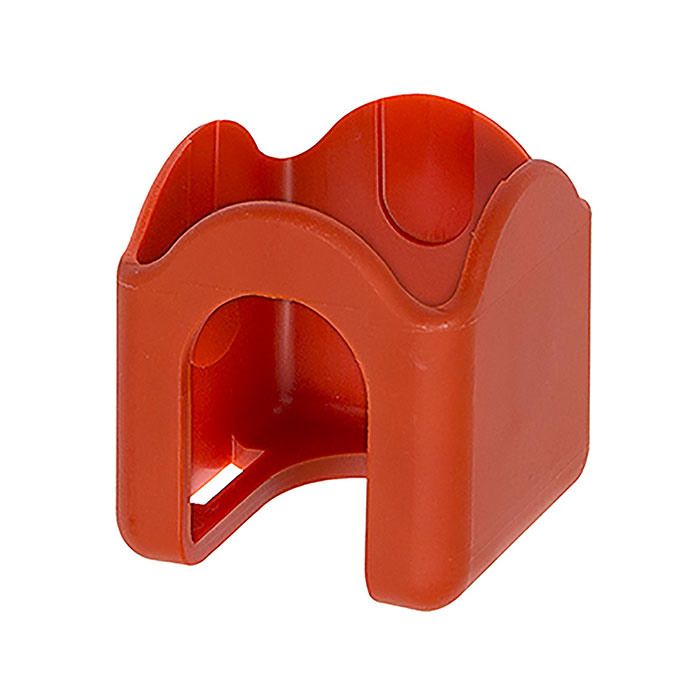

![[143563] RIEGLER Protective cap for swing safety couplings DN 5.5 and DN 6, PA](/web/image/product.template/211374/image_128/%5B143563%5D%20RIEGLER%20Protective%20cap%20for%20swing%20safety%20couplings%20DN%205.5%20and%20DN%206%2C%20PA?unique=16159ec)
|
Type number: 421.01 |
2.88 € | |
![[143566] RIEGLER Kink protection spiral for swing safety couplings, hose 12x8](/web/image/product.template/211377/image_128/%5B143566%5D%20RIEGLER%20Kink%20protection%20spiral%20for%20swing%20safety%20couplings%2C%20hose%2012x8?unique=bfeb317)
|
Type number: 421.04 |
5.25 € | |

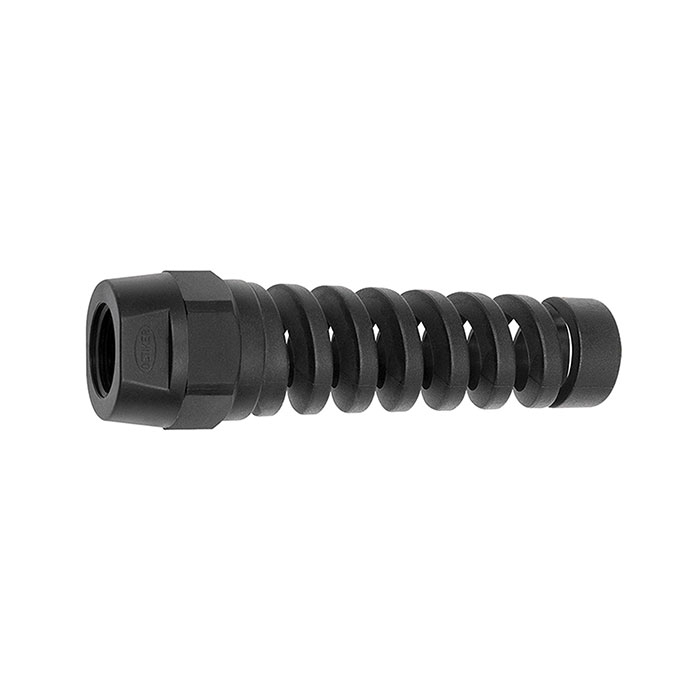

![[143567] RIEGLER Kink protection spiral for swing safety couplings, hose 16x11](/web/image/product.template/211378/image_128/%5B143567%5D%20RIEGLER%20Kink%20protection%20spiral%20for%20swing%20safety%20couplings%2C%20hose%2016x11?unique=a632910)
|
Type number: 421.05 |
21.40 € | |

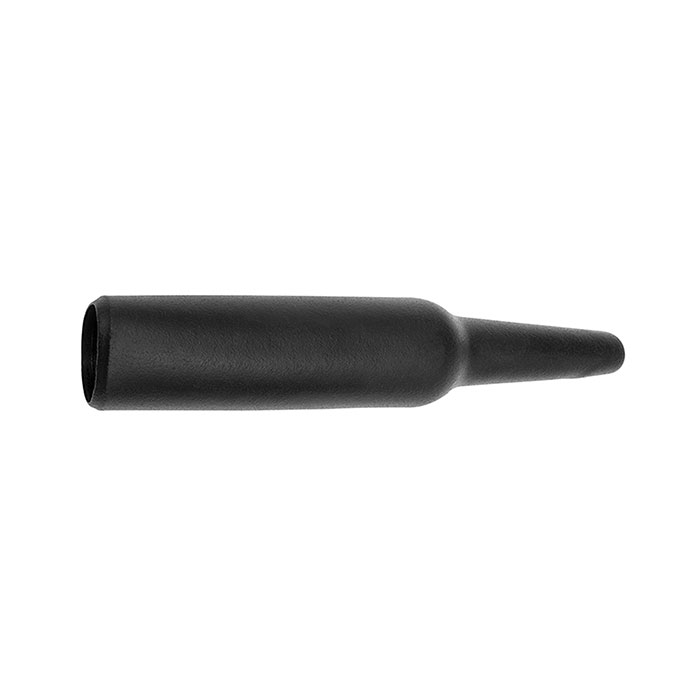

![[143568] RIEGLER Protection sleeve for swing safety couplings DN 5.5 and DN 6](/web/image/product.template/211379/image_128/%5B143568%5D%20RIEGLER%20Protection%20sleeve%20for%20swing%20safety%20couplings%20DN%205.5%20and%20DN%206?unique=e339706)
|
