RIEGLER Swing safety coupling I.D. 5.5, ARO 210, Steel, G 3/8 ET

Price:

22.23 €

RIEGLER Swing safety coupling I.D. 5.5, ARO 210, Steel, G 1/4 IT
RIEGLER Swing safety coupling I.D. 5.5, ARO 210, Steel, G 1/4 IT
22.23 € 22.23 €
RIEGLER Swing safety coupling I.D. 5.5, ARO 210, Steel, G 3/8 IT
RIEGLER Swing safety coupling I.D. 5.5, ARO 210, Steel, G 3/8 IT
22.23 € 22.23 €

RIEGLER Swing safety coupling I.D. 5.5, ARO 210, Steel, G 3/8 ET

https://www.filcom-technik.de/web/image/product.template/208217/image_1920?unique=eecdd6c

Type number: 420.12-SCH

EAN: 4047322567220

22.23 € 22.23 EUR 22.23 € VAT Included

28.74 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

141602

EAN :

4047322567220

Category :

Safety Couplings

Weight :

0.10 kg

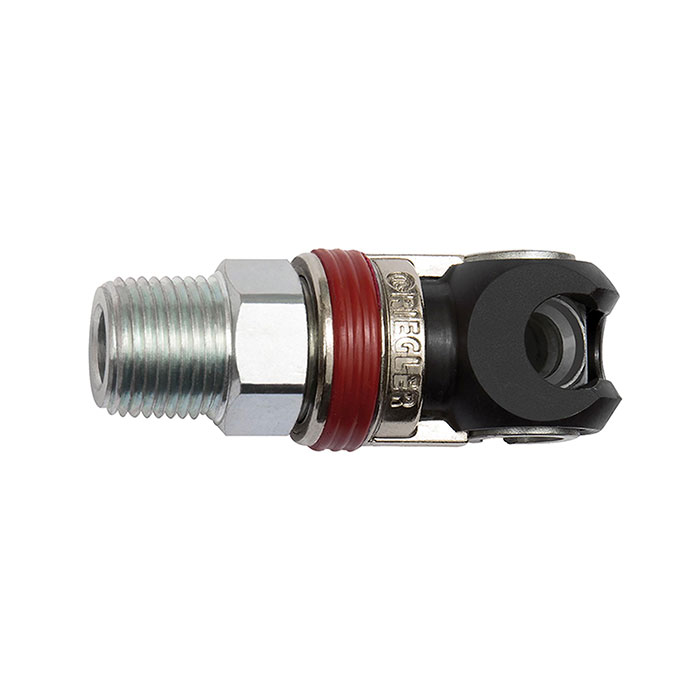

Swivel safety coupling NW 5.5, ARO 210, steel, G 3/8 AG, operating pressure max. 25 bar, temp. -20 °C to 100 °C

Temperature range min. -20 °C
Temperature range max. 100 °C
Medium Compressed air, gases
Housing Steel, QPQ treated
Sealing material NBR
Flow rate measurement at 6 bar and Î"<sub>p </sub>= 0.5 bar
Flow rate 820 l/min (air)
Sleeve Zinc die-cast, nickel-plated, red rubber-coated
Threaded piece Galvanized steel
Operating pressure max. 25 bar / max. 16 bar when engaging/disengaging
SW 19 mm
NW 5.5
Length 59 mm
Connection G 3/8 AG
Connector profile according to ARO 210
Class name MAX
