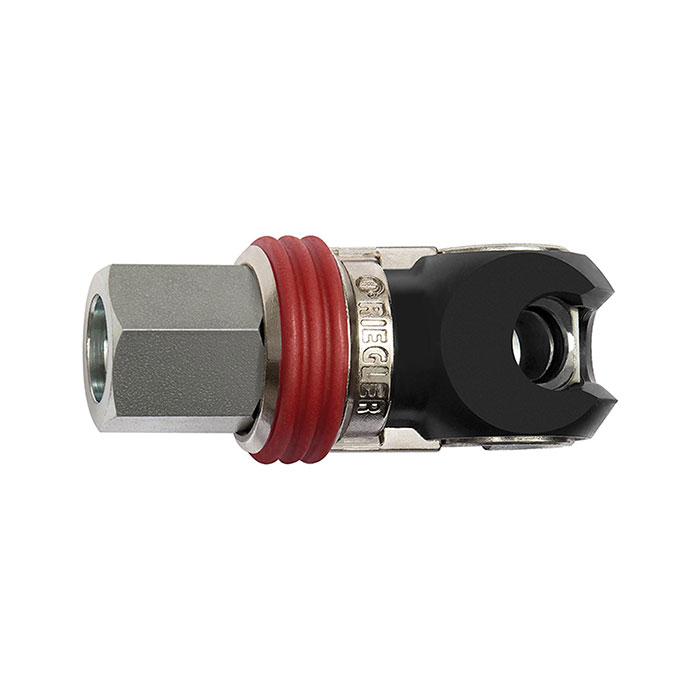

RIEGLER Swing safety coupling I.D. 7.2, EURO 7.2, Steel, G 1/2 IT
Type number: 424.03-SCH
EAN: 4047322567619
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Swivel safety coupling NW 7.2, EURO 7.2, steel, G 1/2 female thread, max. operating pressure 25 bar, temp. -20 °C to 100 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, gases |
| Housing | Steel, QPQ treated |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 2300 l/min (air) |
| Sleeve | Zinc die-cast, nickel-plated, red rubber-coated |
| Threaded piece | Galvanized steel |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 24 mm |
| NW | 7.2 |
| Length | 70 mm |
| Connection | G 1/2 IG |
| Connector profile | EURO 7.2 |
| Class name | MAX |
