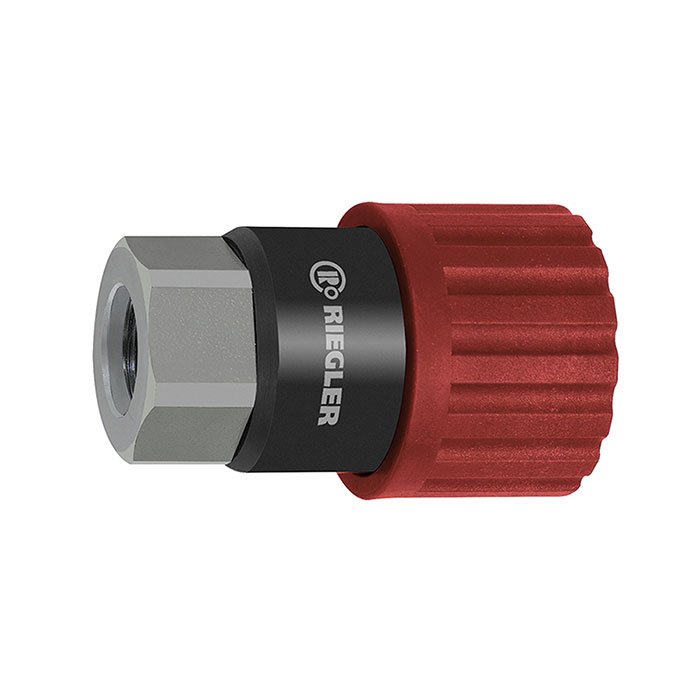

RIEGLER Swivel safety coupling I.D. 6, ISO 6150 C, Steel, G 3/8 IT
Type number: 423.02-DREH
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Swivel safety coupling I.D. 6, ISO 6150 C, Steel, G 3/8 IT, two-stage, Operating pressure max. 25 bar, Temp. -20 °C to 100 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, gases |
| Housing | Steel, QPQ treated |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 630 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Polyamide, red |
| Threaded piece | Galvanized steel |
| Valve | Polyphenylene sulfide (PPS) |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 22 mm |
| NW | 6 |
| Length | 60 mm |
| Connection | G 3/8 IG |
| Connector profile | according to ISO 6150 C |
| Class name | PLUS |
