RIEGLER Swivel safety coupling I.D. 8, ISO 6150 C, Steel, Sleeve I.D. 10
Type number: 425.24-DREH
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Swivel safety coupling I.D. 8, ISO 6150 C, Steel, Sleeve I.D. 10, two-stage, Operating pressure max. 25 bar, Temp. -20°C to 100°C
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, gases |
| Housing | Steel, QPQ treated |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 1200 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Polyamide, red |
| Threaded piece | Galvanized steel |
| Valve | Brass bright |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 27 mm |
| NW | 8 |
| Length | 90 mm |
| Connection | LW 10 |
| Connector profile | according to ISO 6150 C |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

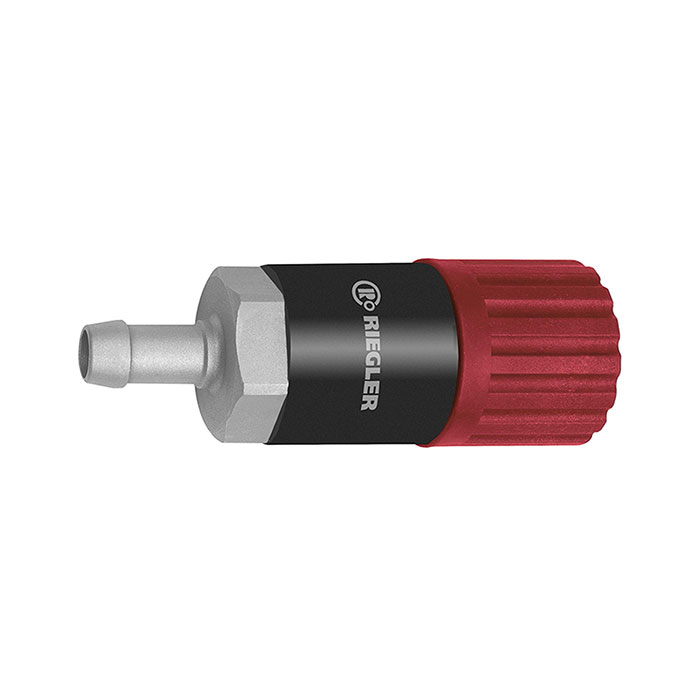

![[141763] RIEGLER Swivel safety coupling I.D. 8, ISO 6150 C, Steel, Sleeve I.D. 13](/web/image/product.template/208369/image_128/%5B141763%5D%20RIEGLER%20Swivel%20safety%20coupling%20I.D.%208%2C%20ISO%206150%20C%2C%20Steel%2C%20Sleeve%20I.D.%2013?unique=fb9725e)
|
