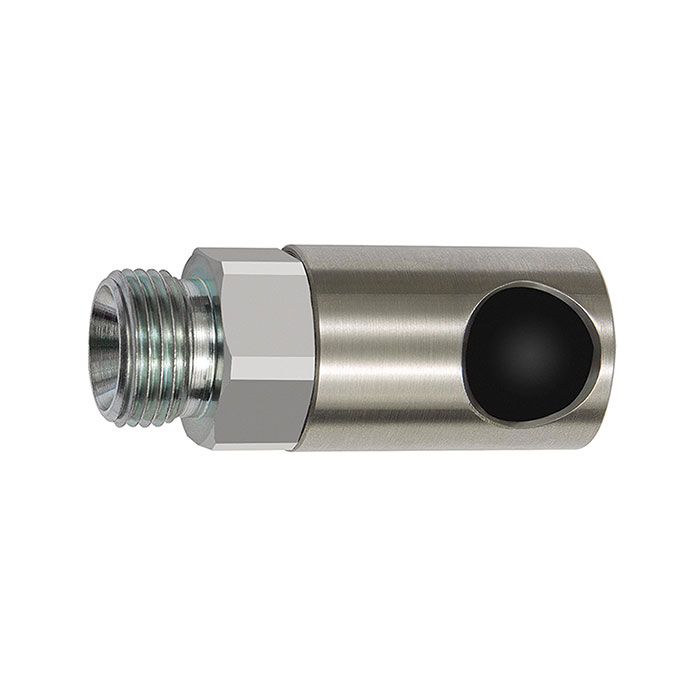

RIEGLER Pushbutton safety coupling I.D. 6, ISO 6150 C, G 1/8 ET
Type number: 406.11-ES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pushbutton safety coupling I.D. 6, ISO 6150 C, Stainless steel, G 1/8 ET, Operating pressure max. 12 bar, Temp. -20 °C to 200 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 200 °C |
| Housing | Stainless steel |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 1 bar |
| Max. operating pressure | 12 bar |
| Flow rate | 1150 l/min (air) |
| Spring | Stainless steel |
| Threaded piece | Galvanized steel |
| Valve | Brass |
| Button | Stainless steel |
| SW | 20 mm |
| NW | 6 |
| Length | 52 mm |
| Connection | G 1/8 AG |
| Connector profile | according to ISO 6150 C |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141933] RIEGLER Pushbutton safety coupling I.D. 6, ISO 6150 C, G 1/2 ET](/web/image/product.template/211306/image_128/%5B141933%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20G%201-2%20ET?unique=ccb5023)
|
Type number: 406.14-ES |
16.39 € | |
![[141931] RIEGLER Pushbutton safety coupling I.D. 6, ISO 6150 C, G 1/4 ET](/web/image/product.template/211304/image_128/%5B141931%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20G%201-4%20ET?unique=07a060f)
|
Type number: 406.12-ES |
16.39 € | |
![[141932] RIEGLER Pushbutton safety coupling I.D. 6, ISO 6150 C, G 3/8 ET](/web/image/product.template/211305/image_128/%5B141932%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20G%203-8%20ET?unique=be9e8bc)
|
Type number: 406.13-ES |
16.39 € | |
