RIEGLER Pushbutton safety coupling I.D. 8, ISO 6150 C, G 1/2 ET
Type number: 408.14-ES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pushbutton safety coupling I.D. 8, ISO 6150 C, Stainless steel, G 1/2 ET, Operating pressure max. 16 bar, Temp. -20 °C to 200 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 200 °C |
| Housing | Stainless steel |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 1 bar |
| Max. operating pressure | 16 bar |
| Flow rate | 2080 l/min (air) |
| Spring | Stainless steel |
| Threaded piece | Galvanized steel |
| Valve | Brass |
| Button | Stainless steel |
| SW | 25 mm |
| NW | 8 |
| Length | 75 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/2 AG |
| RoHS material information | RoHS compliant |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | 1.0% w/w and < 10.0% |
| Connector profile | according to ISO 6150 C |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141955] RIEGLER Pushbutton safety coupling I.D. 8, ISO 6150 C, G 1/4 ET](/web/image/product.template/211328/image_128/%5B141955%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%208%2C%20ISO%206150%20C%2C%20G%201-4%20ET?unique=929f64f)
|
Type number: 408.12-ES |
40.11 € | |

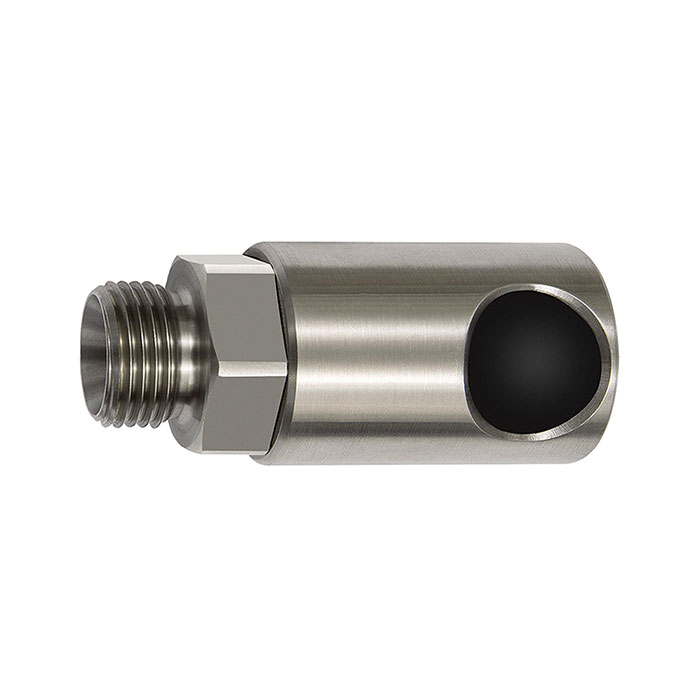

![[141956] RIEGLER Pushbutton safety coupling I.D. 8, ISO 6150 C, G 3/8 ET](/web/image/product.template/211329/image_128/%5B141956%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%208%2C%20ISO%206150%20C%2C%20G%203-8%20ET?unique=9bcc963)
|
