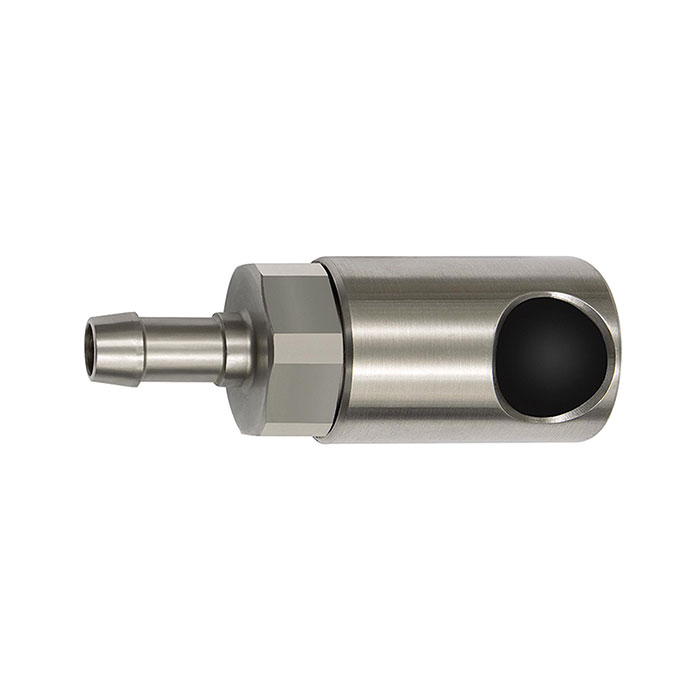

RIEGLER Pushbutton safety coupling I.D. 11, ISO 6150 C, Sleeve I.D. 19
Type number: 411.27-ES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pushbutton safety coupling I.D. 11, ISO 6150 C, Stainless steel, Sleeve I.D.19, Operating press. max. 16 bar, Temp. -20°C to 200°C
| Temperature range min. | -20 °C |
| Temperature range max. | 200 °C |
| Housing | Stainless steel |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 1 bar |
| Max. operating pressure | 16 bar |
| Flow rate | 4500 l/min (air) |
| Spring | Stainless steel |
| Threaded piece | Galvanized steel |
| Valve | Brass |
| Button | Stainless steel |
| SW | 30 mm |
| NW | 11 |
| Length | 107 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | LW 19 |
| RoHS material information | RoHS compliant |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | 1.0% w/w and < 10.0% |
| Connector profile | according to ISO 6150 C |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141984] RIEGLER Pushbutton safety coupling I.D. 11, ISO 6150 C, Sleeve I.D. 10](/web/image/product.template/211357/image_128/%5B141984%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%2011%2C%20ISO%206150%20C%2C%20Sleeve%20I.D.%2010?unique=592c5fb)
|
Type number: 411.24-ES |
61.00 € | |
![[141985] RIEGLER Pushbutton safety coupling I.D. 11, ISO 6150 C, Sleeve I.D. 13](/web/image/product.template/211358/image_128/%5B141985%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%2011%2C%20ISO%206150%20C%2C%20Sleeve%20I.D.%2013?unique=9d7efe0)
|
Type number: 411.25-ES |
55.85 € | |
![[141986] RIEGLER Pushbutton safety coupling I.D. 11, ISO 6150 C, Sleeve I.D. 16](/web/image/product.template/211359/image_128/%5B141986%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%2011%2C%20ISO%206150%20C%2C%20Sleeve%20I.D.%2016?unique=168a991)
|
Type number: 411.26-ES |
61.00 € | |
![[141983] RIEGLER Pushbutton safety coupling I.D. 11, ISO 6150 C, Sleeve I.D. 8](/web/image/product.template/211356/image_128/%5B141983%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%2011%2C%20ISO%206150%20C%2C%20Sleeve%20I.D.%208?unique=a7f01e4)
|
Type number: 411.22-ES |
61.00 € | |
